Rippa
RS20 Skid Steer Loader
RS20 Skid Steer Loader
Couldn't load pickup availability

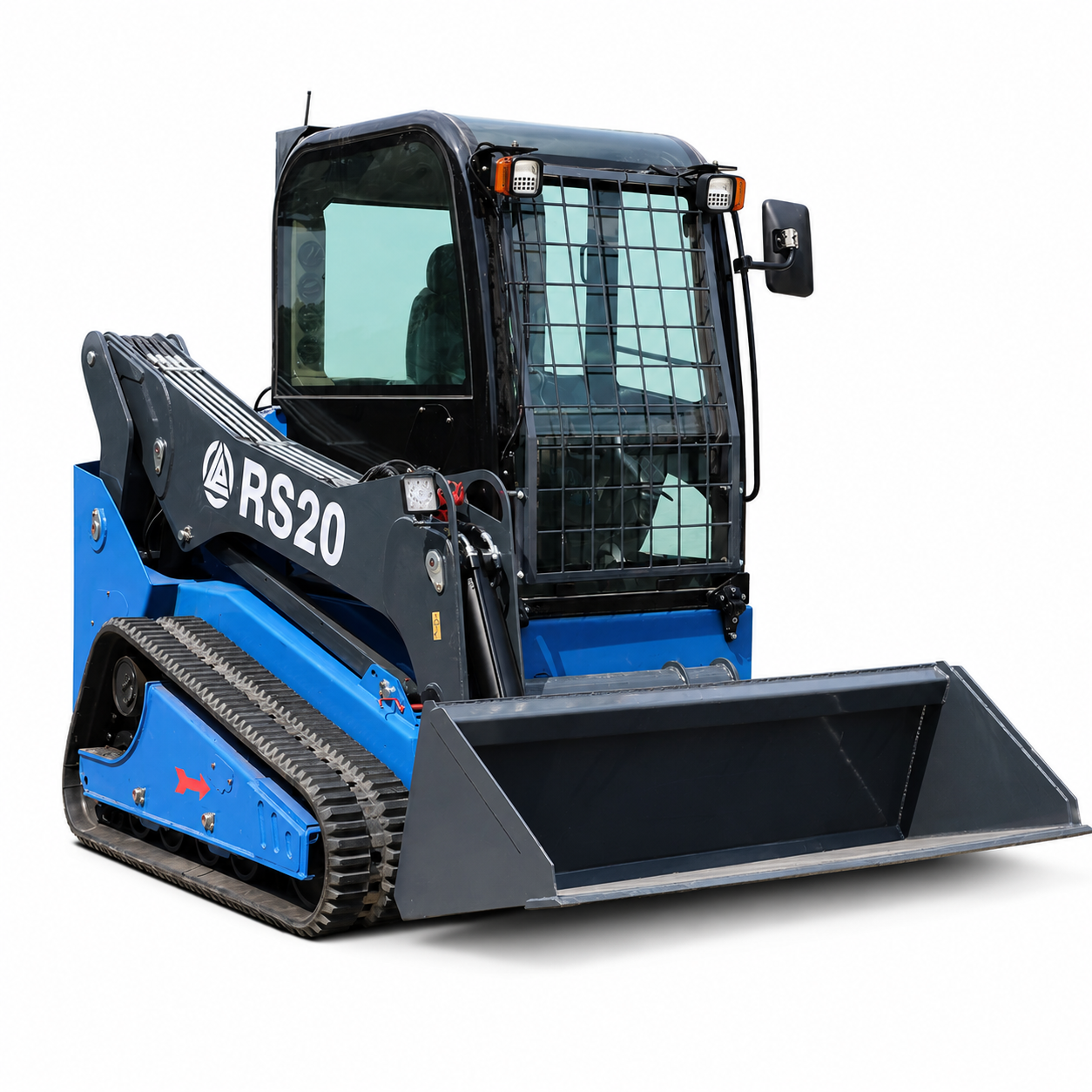

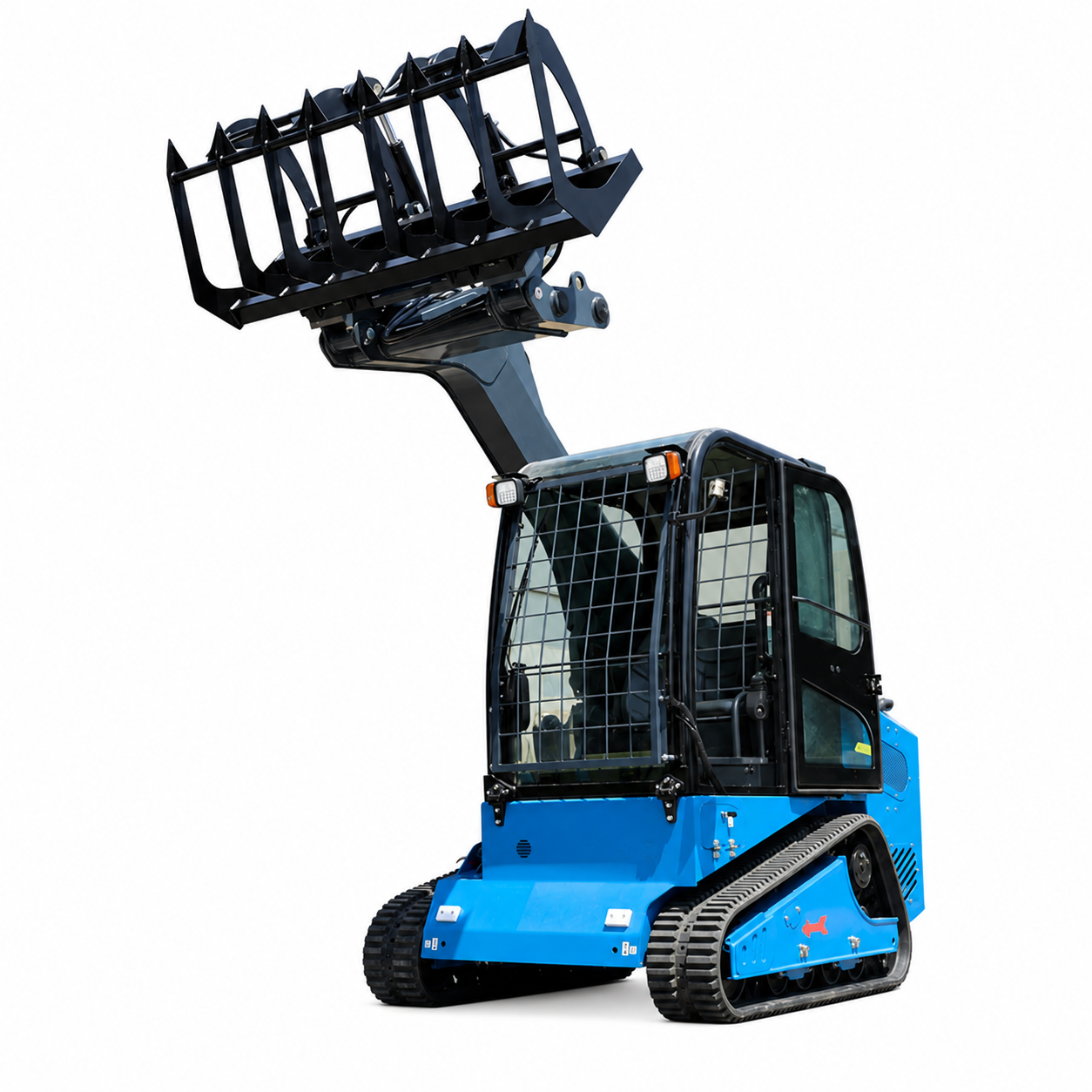

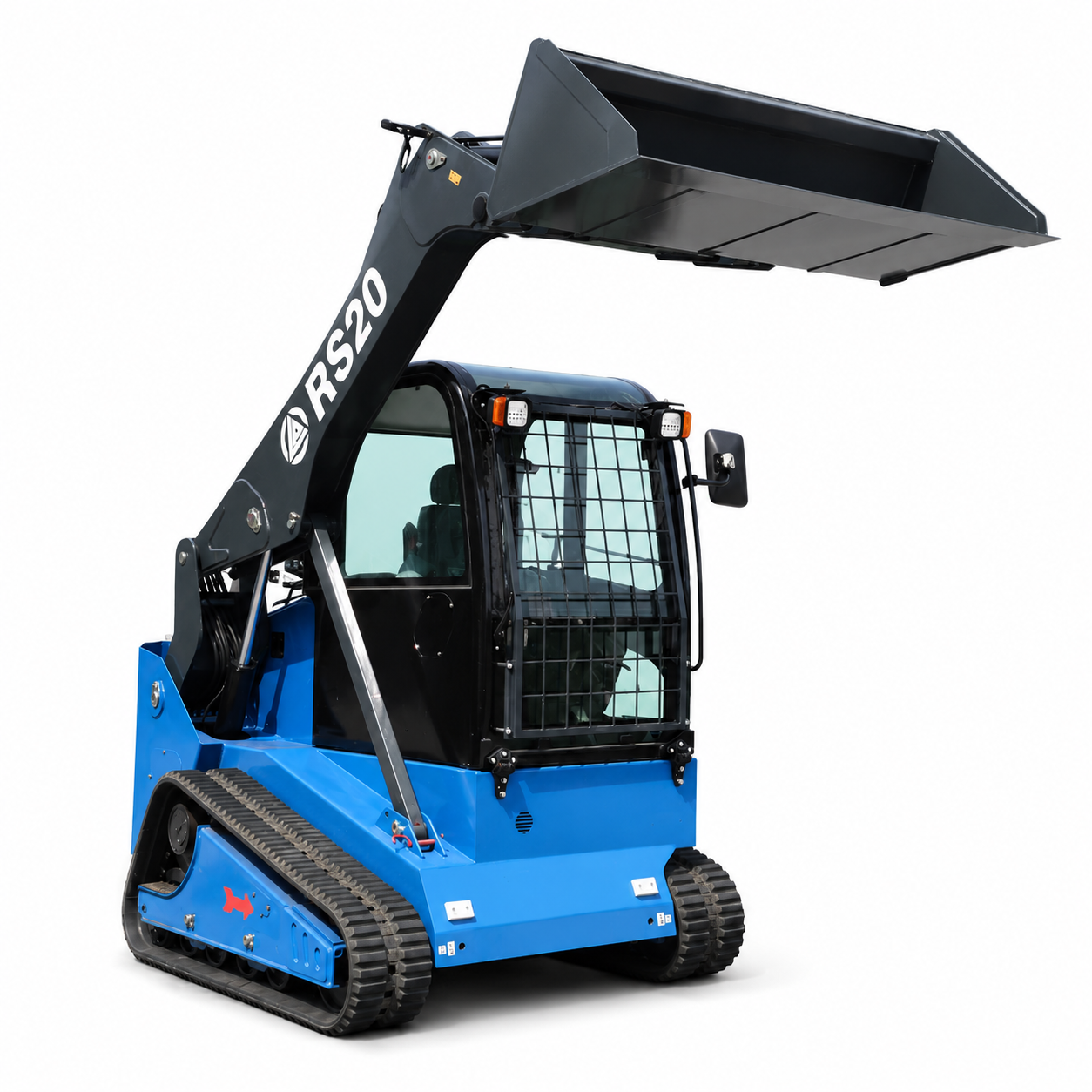

RS20 Skid Steer Loader
The Rippa RS20 is a heavy-duty skid steer loader designed for high-intensity construction, mining support, material handling, landscaping, municipal work, and demanding site operations. With a powerful Yanmar diesel engine, enclosed cab, high flow hydraulic system, and strong loading capacity, the RS20 is built for larger workloads and tougher operating environments.
With a machine working weight of 4,225 kg, a rated safe load of 1,050 kg, and a maximum load capacity of 2,100 kg, the RS20 offers serious lifting, loading, clearing, and attachment capability while maintaining operator comfort and stable machine control.
Key features include:
✔ Yanmar 4TNV98C-PLYS diesel engine for strong heavy-duty performance
✔ 4,225 kg machine working weight for high stability under load
✔ Rated safe load of 1,050 kg and maximum load capacity of 2,100 kg
✔ Enclosed cab with air conditioning and radio for operator comfort
✔ High-flow hydraulic system for demanding attachment work
✔ Dual-speed travel with speed up to 10 km/h
✔ LCD multi-function display showing key machine information
✔ Compatible with multiple buckets, forks, augers, brooms, breakers, trenchers, grapples, and specialist tools
Additional accessories, such as diggers, augers, pallet forks, rock buckets, hydraulic breakers, rotary drills, angle brooms, standard buckets, 4-in-1 buckets, pile drivers, fork clamps, ditch compactors, trenchers, snow blades, and grapples, can be found in the “Accessories” section on our website.
RS20 – Performance Data
| Basic Parameters | EU / US |
|---|---|
| Machine Working Weight | 4225 kg / 9295 lb |
| Bucket Capacity | 0.4 m³ / 14.1 ft³ |
| Rated Load Mass / Safe Load | 1050 kg / 2310 lb |
| Maximum Load Mass | 2100 kg / 4620 lb |
| Travel Speed | 0–5 / 0–10 km/h / 0–3.1 / 0–6.2 mph |
| Gradeability | 25% |
| Ground Pressure | 52.16 kPa / 7.57 psi |
| Maximum Unloading Height | 2250 mm / 88.6 in |
| Maximum Loading Height | 3750 mm / 147.6 in |
| Maximum Unloading Distance | 1360 mm / 53.5 in |
| Minimum Ground Clearance | 230 mm / 9.1 in |
RS20 – Engine Data
| Engine | Specification |
|---|---|
| Engine Brand | Yanmar |
| Engine Model | 4TNV98C-PLYS |
| Maximum Horsepower | 67.9 ps / 66.7 hp |
| Maximum Power | 49.9 kW |
| Maximum Speed | 2400 rpm |
| Displacement | 3.319 L |
| Number of Cylinders | 4 |
| Cooling Method | Water cooling + air cooling |
RS20 – Dimensions
| Body Dimensions | EU / US |
|---|---|
| Transport Length with Bucket | 3820 mm / 150.4 in |
| Transport Length without Bucket | 3040 mm / 119.7 in |
| Transport Width | 1850 mm / 72.8 in |
| Transport Height | 2460 mm / 96.9 in |
| Bucket Width | 1850 mm / 72.8 in |
RS20 – Hydraulic System
| Hydraulic System | Specification |
|---|---|
| Travel Pump Type | Double closed pump |
| Fuel Charge Pump Type | Closed pump with built-in gear pump |
| Working Pump Type | Plunger pump |
| Work Pressure | 21 MPa / 3045.8 psi |
| Travel Work Pressure | 32.5 MPa / 4713.8 psi |
Operation, Safety & Maintenance
The RS20 is designed for high-load work with a comfortable enclosed cab, adjustable seat, centralised controls, radio, air conditioning, and LCD machine display. The control layout is designed to improve operator efficiency during long working days.
The hydraulic system is designed for strong and stable performance, with multiple pump systems supporting efficient power distribution and smooth attachment operation. The hydraulic cylinder design helps improve durability under demanding working conditions.
Maintenance access is made easier with rear-mounted service points, an openable rear guard, concentrated maintenance areas, and accessible components and pipelines for routine inspection and repair.
Available Configuration Options
✔ Enclosed cab configuration
✔ Tracked skid steer loader design
✔ Yanmar diesel engine configuration
✔ Optional wheeled configuration available depending on requirement
✔ Air conditioning and radio-equipped cab
✔ LCD multi-function display
✔ Multiple attachment options available depending on job requirements
Compatible Attachments
✔ Standard bucket
✔ Digger
✔ Auger
✔ Pallet fork
✔ Rock bucket
✔ Hydraulic breaker
✔ Rotary drill
✔ Angle broom
✔ 4-in-1 bucket
✔ Pile driver
✔ Fork clamp
✔ Ditch compactor
✔ Trencher
✔ Snow blade
✔ Grapple and other specialist tools available on request
Please contact us to confirm the most suitable RS20 configuration for your project, including track or wheel requirements, bucket choice, attachment compatibility, hydraulic requirements, and available accessory options.
