RS04 Skid Steer Loader

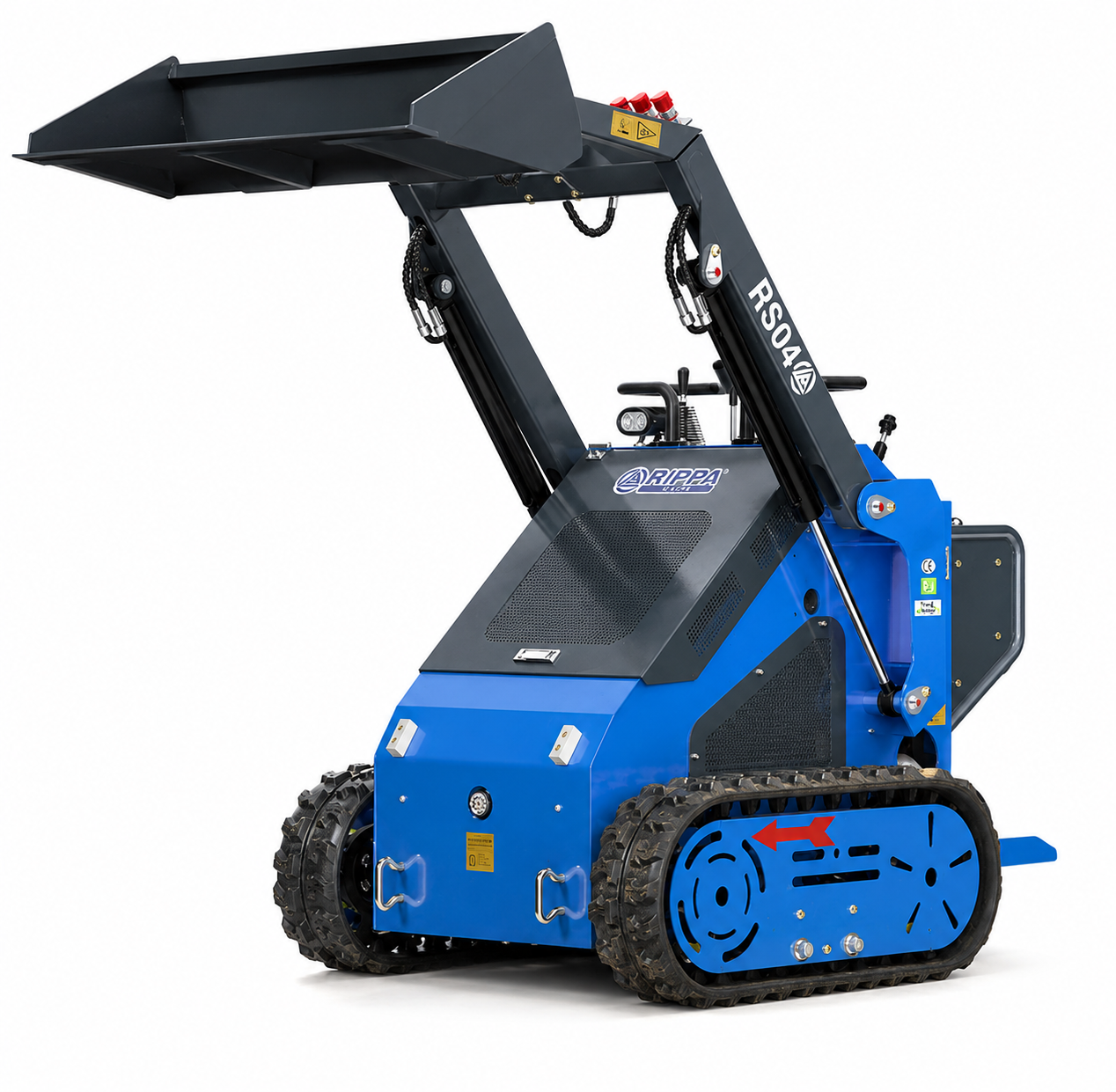

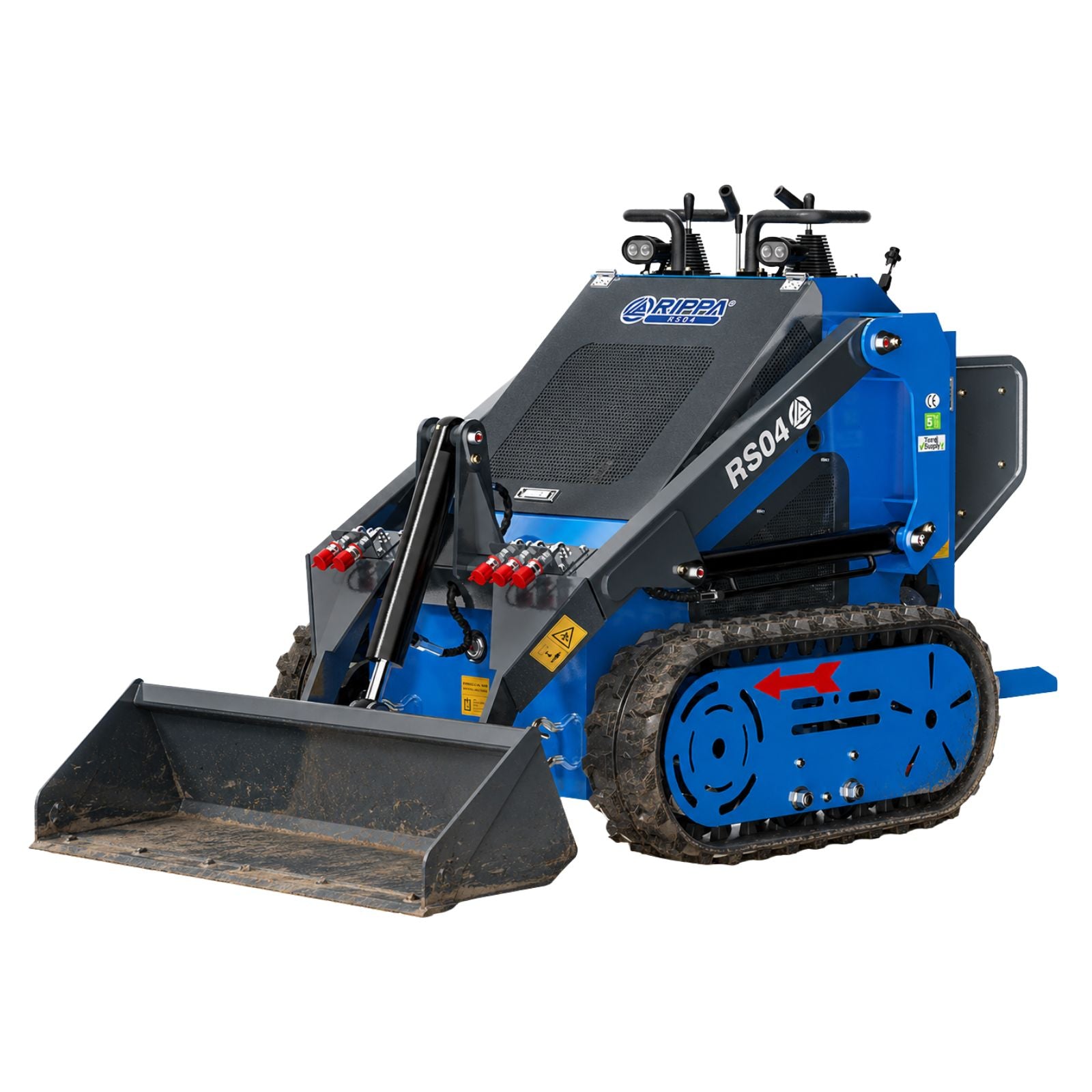

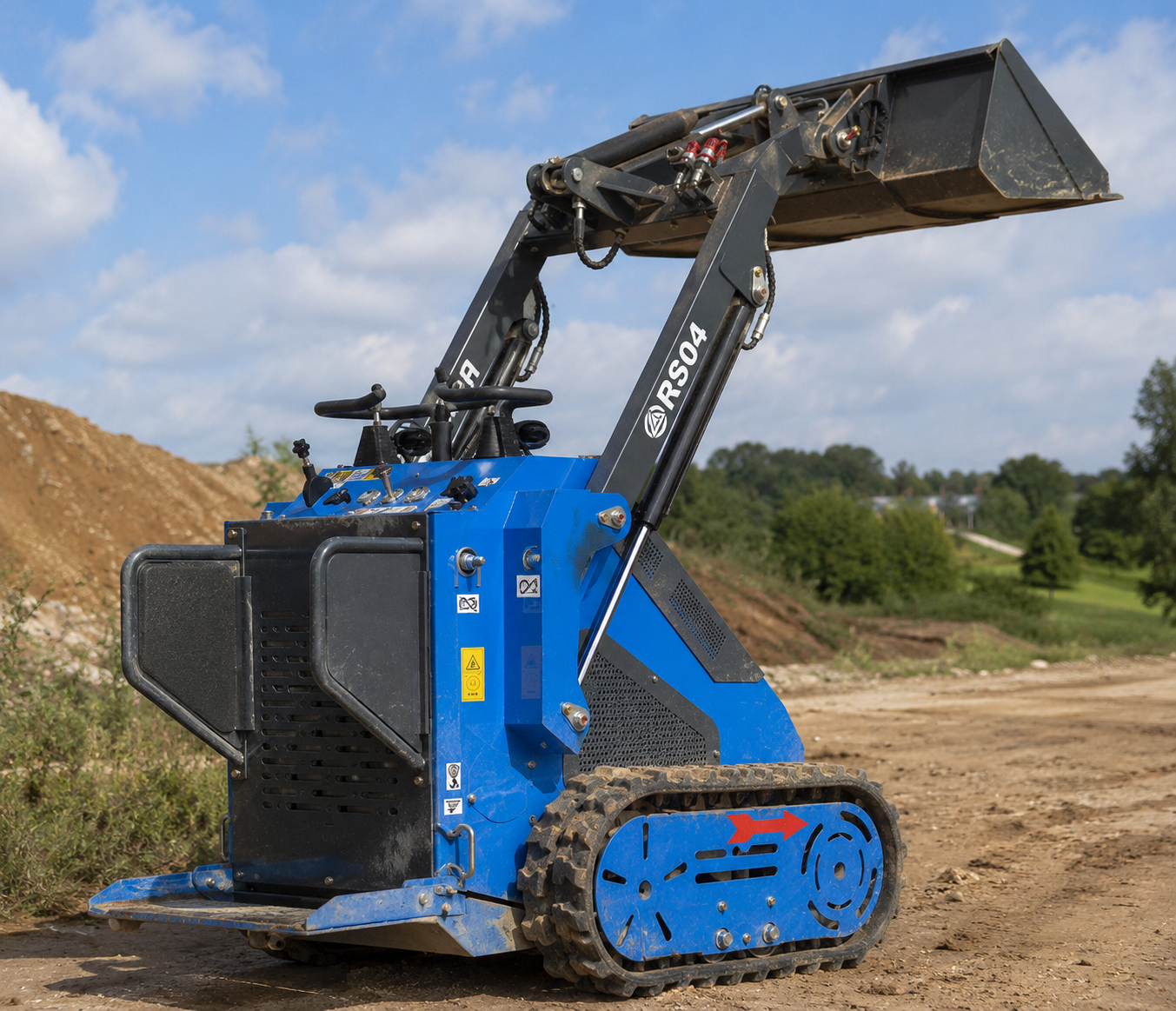

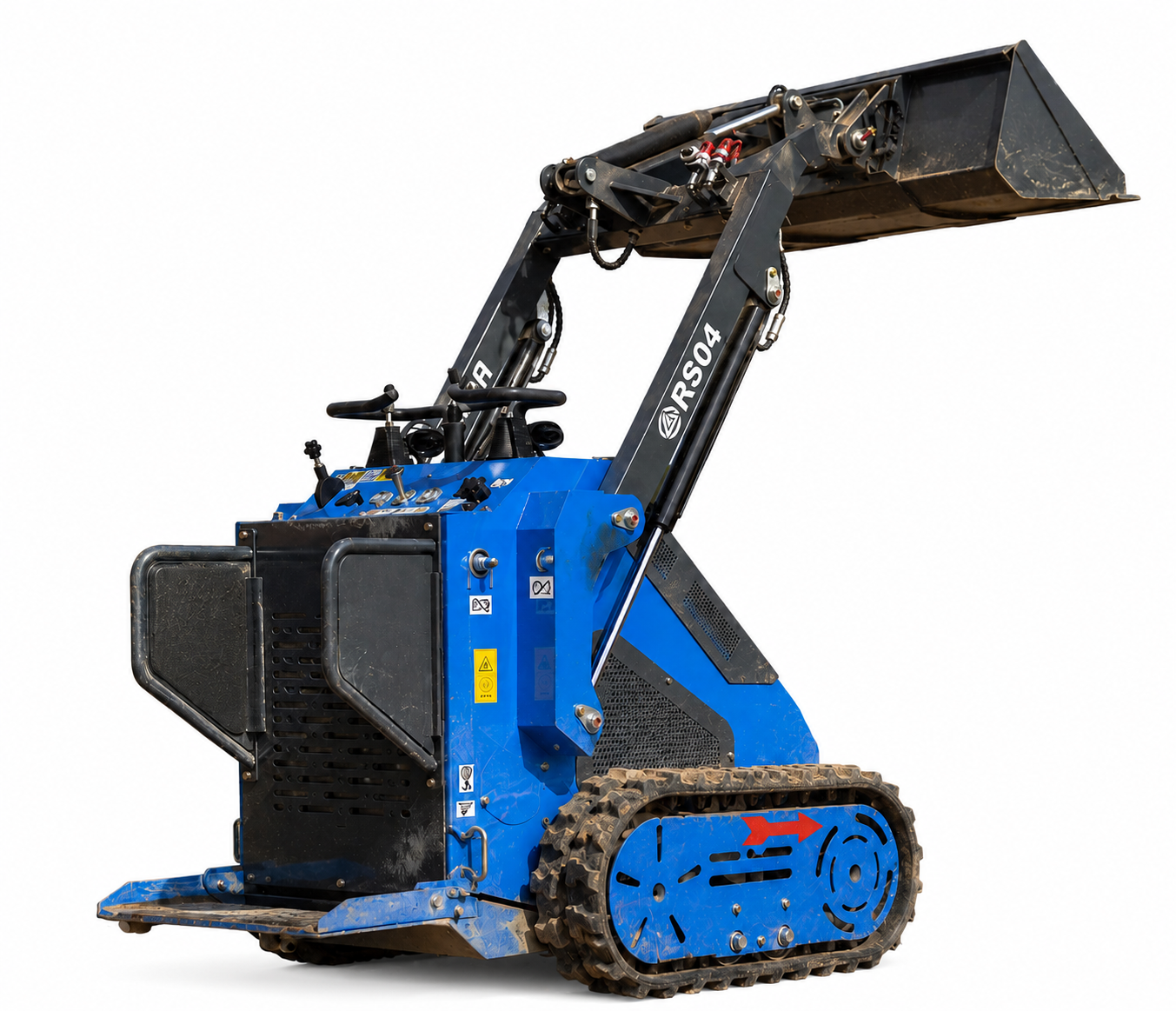

The Rippa RS04 is a compact skid steer loader designed for landscaping, farming, property maintenance, construction support, and multi-purpose site work. With a stronger Kubota diesel engine, modular track/wheel mobility system, and wide attachment compatibility, the RS04 is a practical upgrade for users who need more power, flexibility, and efficiency from a compact loader.
With a machine working weight of 890 kg, a rated safe load of 175 kg, and a maximum load capacity of 400 kg, the RS04 is built for material handling, ground preparation, digging, loading, clearing, trenching, and attachment-based work in tight or uneven work areas.
Key features include:
✔ Kubota Z482 diesel engine for reliable compact performance
✔ 890 kg machine working weight for improved stability
✔ Rated safe load of 175 kg and maximum load capacity of 400 kg
✔ Three-gear pump drive system for smooth and precise operation
✔ Five independent auxiliary hydraulic lines and one dedicated return unloading line
✔ Industry-standard quick coupler for fast attachment changes
✔ Modular mobility system allowing track/wheel conversion
✔ Compact design suitable for landscaping, construction, agriculture, and property work
Additional accessories, such as openers, hydraulic grass clips, snowboards, wood grabbers, breakers, rotary drilling tools, snow ploughs, concrete mixers, excavator arms, standard buckets, forks, rock buckets, piling foundation tools, fork holders, compactors, and other attachments, can be found in the “Accessories” section on our website.
RS04 – Performance Data
| Basic Parameters | EU / US |
|---|---|
| Machine Working Weight | 890 kg / 1958 lb |
| Bucket Capacity | 0.15 m³ / 5.3 ft³ |
| Rated Load Mass / Safe Load | 175 kg / 385 lb |
| Maximum Load Mass | 400 kg / 880 lb |
| Travel Speed | 0–2.5 km/h / 0–1.86 mph |
| Gradeability | 25% |
| Ground Pressure | 25.17 kPa / 3.7 psi |
| Maximum Unloading Height | 1553 mm / 61.1 in |
| Maximum Loading Height | 2080 mm / 81.9 in |
| Maximum Unloading Distance | 550 mm / 21.7 in |
| Minimum Ground Clearance | 108 mm / 4.3 in |
RS04 – Engine Data
| Engine | Specification |
|---|---|
| Engine Brand | Kubota |
| Engine Model | Z482 |
| Maximum Horsepower | 11.1 hp / 11.2 ps |
| Maximum Power | 8.3 kW |
| Maximum Speed | 3600 rpm |
| Displacement | 0.479 L / 0.13 gal |
| Number of Cylinders | 2 |
| Cooling Method | Water cooling |
| Engine Oil Change Amount | 2.5 L / 0.66 gal |
| Fuel Type | Diesel fuel |
| Theoretical Fuel Consumption | 0.8–1.2 L/h / 0.21–0.32 gal/h |
RS04 – Dimensions
| Body Dimensions | EU / US |
|---|---|
| Transport Length with Bucket | 1970 mm / 77.6 in |
| Transport Length without Bucket | 1520 mm / 59.8 in |
| Transport Width | 1150 mm / 45.3 in |
| Transport Height | 1300 mm / 51.2 in |
| Bucket Width | 1150 mm / 45.3 in |
RS04 – Hydraulic System
| Hydraulic System | Specification |
|---|---|
| Main Pump Type / Model | Gear Pump GPG4422H92 |
| Main Pump Brand | Tianjin Walk |
| Multi-way Valve Brand | Tengfei |
| Travel Hydraulic Motor Type | Deston BM5-315 |
| Travel Motor Brand | Deston |
Operation, Access & Maintenance
The RS04 is designed for efficient operation with a three-way two-line mechanical valve, independent hydraulic control, auxiliary operating levers, and an industry-standard quick coupler for fast attachment switching.
The hydraulic system includes five independent auxiliary hydraulic lines and a dedicated oil return unloading line, helping support a variety of attachments while improving operating efficiency.
Practical details include built-in oil pipe arrangement, lifting rings for easier transport, a multifunctional display instrument, a protected power switch, anti-skid foot pedal design, and accessible service points for routine inspection and maintenance.
Available Configuration Options
✔ Standard bucket configuration
✔ Industry-standard quick coupler
✔ Track-based compact loader design
✔ Modular track/wheel conversion system
✔ Diesel engine configuration
✔ Multiple attachment options available depending on job requirements
Compatible Attachments
✔ Standard bucket
✔ Opener
✔ Hydraulic grass clip
✔ Snowboard and snow plough
✔ Wood grabber
✔ Breaker
✔ Rotary drilling tool
✔ Concrete mixer
✔ Excavator arm
✔ Forks and fork holder
✔ Rock bucket
✔ Piling foundation tool
✔ Compactors and other specialist tools available on request
Please contact us to confirm the most suitable RS04 configuration for your project, including bucket choice, mobility setup, attachment requirements, and available accessory options.
