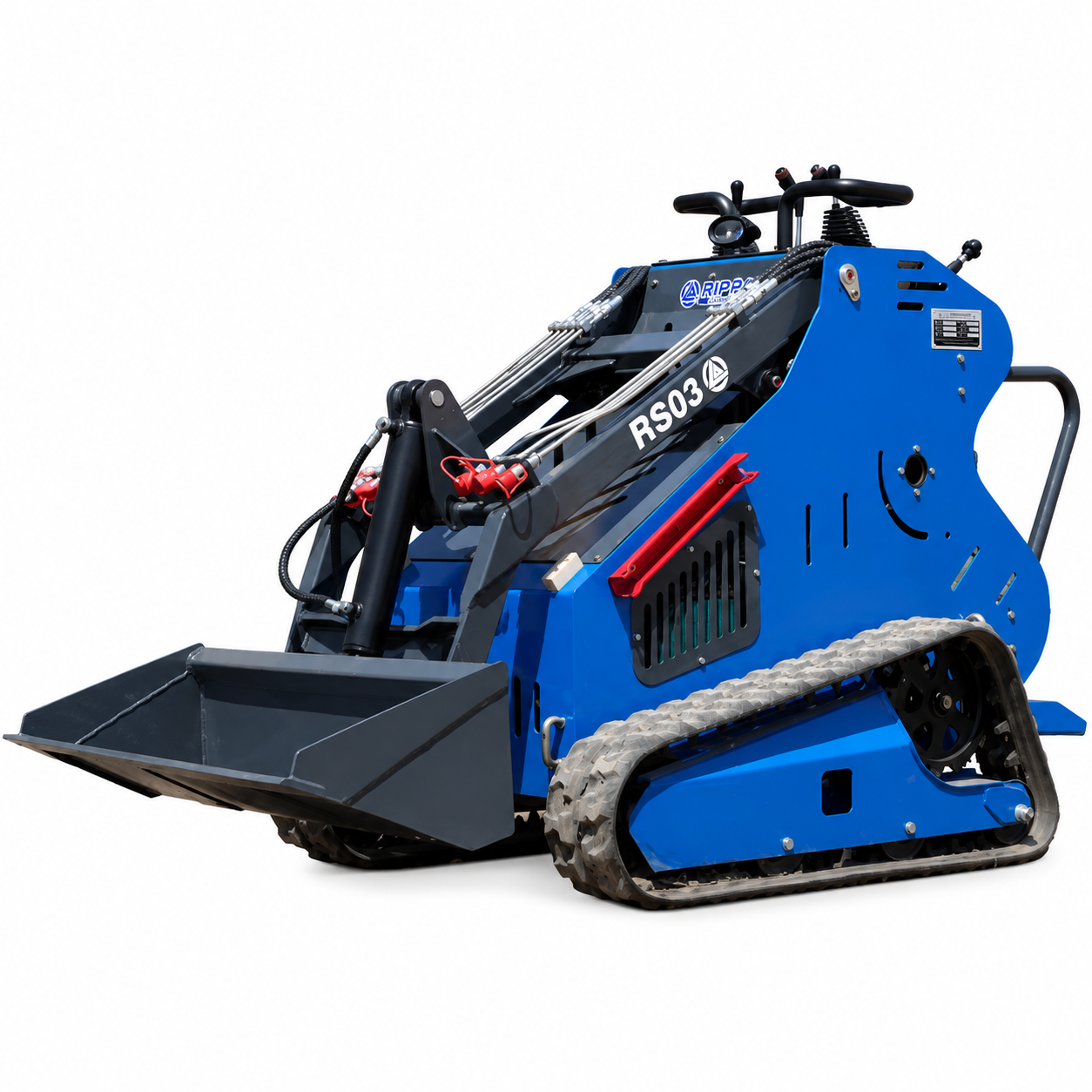

RS03 Skid Steer Loader
RS03 Skid Steer Loader
Couldn't load pickup availability
RS03 Skid Steer Loader
The Rippa RS03 is a compact skid steer loader designed for landscaping, farming, property maintenance, light construction, and tight-access work areas. Its compact tracked design, quick-change attachment system, and simple operator controls make it a practical all-round machine for users who need strong performance in a small footprint.
With a machine working weight of 725 kg, a rated safe load of 140 kg, and a maximum load capacity of 280 kg, the RS03 is built for efficient material handling, ground preparation, cleaning, digging, trenching, and attachment-based work.
Key features include:
✔ Compact tracked skid steer design for tight-access work areas
✔ Briggs & Stratton XR2100 petrol engine
✔ 725 kg machine working weight for compact stability
✔ Quick-change attachment system for fast tool replacement
✔ Chain transmission system for efficient drive performance
✔ Anti-skid pedal design for safer machine operation
✔ Detachable inspection panels for easier access to key service areas
Additional accessories, such as trenchers, hydraulic forks, snowboards, timber grapples, digging arms, drill rods, forks, rock shovels, breakers, rotary drilling tools, snow ploughs, buckets, concrete mixers, pile hammers, fork clamps, and trench compactors, can be found in the “Accessories” section on our website.
RS03 – Performance Data
| Basic Parameters | EU / US |
|---|---|
| Machine Working Weight | 725 kg / 1595 lb |
| Bucket Capacity | 0.15 m³ / 5.3 ft³ |
| Rated Load Mass / Safe Load | 140 kg / 308 lb |
| Maximum Load Mass | 280 kg / 616 lb |
| Travel Speed | 0–2.5 km/h / 0–1.55 mph |
| Gradeability | 25% |
| Ground Pressure | 22.5 kPa |
| Maximum Unloading Height | 1553 mm / 61.1 in |
| Maximum Loading Height | 2259 mm / 88.9 in |
| Maximum Unloading Distance | 620 mm / 24.4 in |
| Minimum Ground Clearance | 129 mm / 5.1 in |
RS03 – Engine Data
| Engine | Specification |
|---|---|
| Engine Brand | B&S |
| Engine Model | XR2100 |
| Maximum Horsepower | 13.6 ps / 13.4 hp |
| Maximum Power | 10 kW |
| Maximum Speed | 3600 rpm |
| Displacement | 0.42 L / 0.11 gal |
| Number of Cylinders | 1 |
| Cooling Method | Air-cooled |
| Engine Oil Change Amount | 1.2 L / 0.31 gal |
| Fuel Type | Gasoline / Petrol |
| Fuel Grade | 92# |
| Theoretical Fuel Consumption | 0.8–1.2 L/h / 0.21–0.37 gal/h |
RS03 – Dimensions
| Body Dimensions | EU / US |
|---|---|
| Transport Length with Bucket | 2100 mm / 82.7 in |
| Transport Length without Bucket | 1638 mm / 64.5 in |
| Transport Width | 1150 mm / 45.3 in |
| Transport Height | 1361 mm / 53.6 in |
| Bucket Width | 1150 mm / 45.3 in |
RS03 – Hydraulic System
| Hydraulic System | Specification |
|---|---|
| Main Pump Type / Model | Gear pump GPF31044SLP |
| Main Pump Brand | Tianji Walking |
| Multi-way Valve Brand | Tengfei |
| Travel Hydraulic Motor Type | Luko BM5-250 |
| Travel Motor Brand | Luko |
Operation, Access & Maintenance
The RS03 is designed for simple operation and flexible site use. The machine can support 360-degree omni-directional operation, and the quick-change system allows auxiliary equipment to be replaced quickly and conveniently.
The crawler design uses a chain transmission system for efficient driving force, while the support roller and independent hydraulic drive setup are designed to improve control, traction, and machine movement in different working conditions.
Maintenance access is improved through detachable inspection panels, protected oil pipelines, and accessible service areas. These features help make inspection and servicing more convenient for regular machine upkeep.
Available Configuration Options
✔ Standard bucket configuration
✔ Quick-change attachment system
✔ Track-based compact loader design
✔ Petrol engine configuration
✔ Multiple attachment options available depending on job requirements
Compatible Attachments
✔ Standard bucket
✔ Trencher
✔ Hydraulic fork
✔ Timber grapple
✔ Digging arm
✔ Drill rods and rotary drilling tools
✔ Forks and fork clamp
✔ Rock shovel
✔ Breaker
✔ Snowboard and snow plough
✔ Concrete mixer
✔ Pile hammer
✔ Trench compactor and other specialist tools available on request
Please contact us to confirm the most suitable RS03 configuration for your project, including bucket choice, attachment requirements, and available accessory options.
