R57 Pro Mini Excavator
R57 Pro Mini Excavator
Couldn't load pickup availability

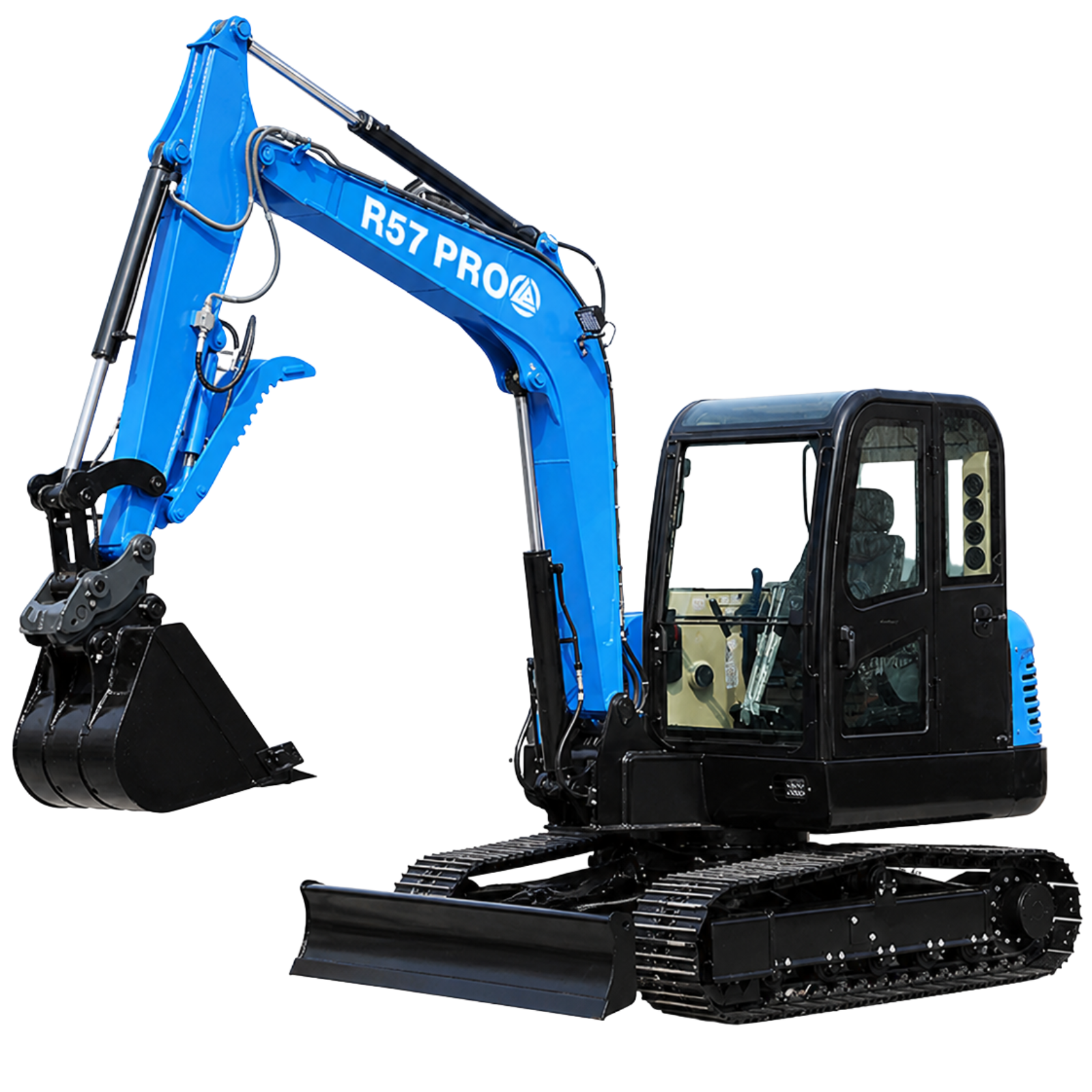

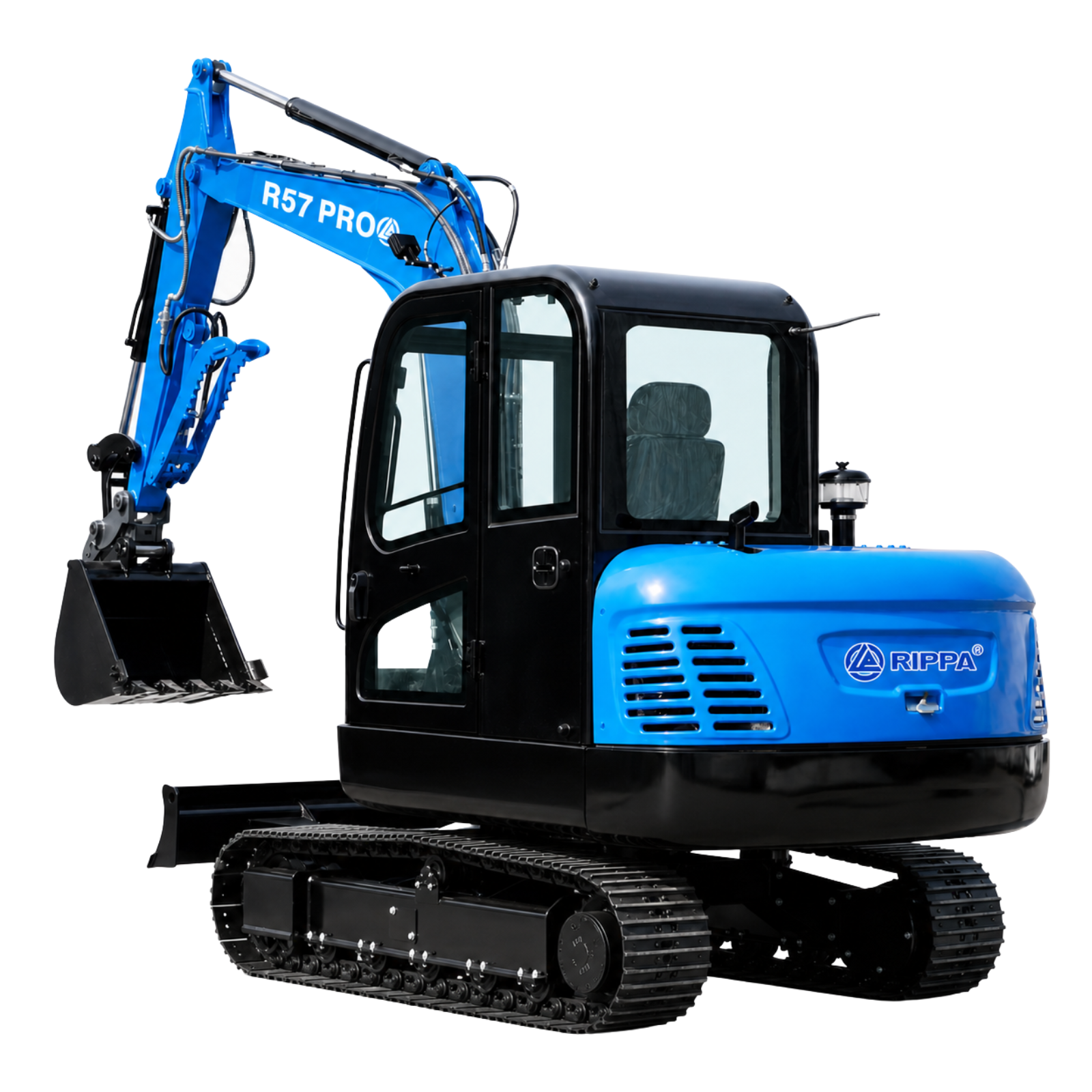

R57 PRO Mini Excavator
The Rippa R57 PRO is a powerful next-generation excavator designed for higher productivity, improved fuel efficiency, and demanding construction work. Powered by a Kubota V2607 diesel engine, the R57 PRO provides strong digging performance, excellent control, and the stability required for larger excavation, groundworks, landscaping, and commercial jobsite applications.
With an operating weight of 5,775 kg, a maximum digging depth of 3.785 meters, and a maximum digging force of 32 kN, the R57 PRO is built for heavier workloads while still offering precise manoeuvrability, a comfortable cab, and practical maintenance access.
Key features include:
✔ Kubota V2607 diesel engine for strong and reliable performance
✔ 5,775 kg operating weight for improved stability on heavier work
✔ High digging force for excavation, loading, trenching, and groundworks
✔ Spacious cab with air conditioning and ergonomic control layout
✔ Pilot hydraulic control for smooth and accurate operation
✔ Easy-access maintenance points for daily checks and servicing
✔ Multiple attachment options available for different working environments
Additional accessories, such as breakers, rippers, rakes, hydraulic wood grabbers, quick couplers, mowers, compactors, screen buckets, and other attachments, can be found in the “Accessories” section on our website.
R57 PRO – Performance Data
| Basic Parameters | EU / US |
|---|---|
| Operating Weight | 5775 kg / 12705 lb |
| Bucket Capacity | 0.175 m³ / 6.18 ft³ |
| Travel Speed (low/high) | 0–2.4 / 0–3.8 km/h / 0–1.5 / 0–2.4 mph |
| Gradeability | 35% |
| Ground Pressure | 35.4 kPa / 5.1 psi |
| Maximum Digging Force | 32 kN / 7194 lbf |
| Maximum Digging Radius | 6180 mm / 242.5 in |
| Maximum Digging Depth | 3785 mm / 149 in |
| Maximum Digging Height | 5810 mm / 228.7 in |
| Maximum Unloading Height | 4080 mm / 160.6 in |
R57 PRO – Engine Data
| Engine | Specification |
|---|---|
| Engine Brand | Kubota |
| Engine Model | V2607 |
| Maximum Horsepower | 48.3 ps / 47.6 hp |
| Maximum Power | 35.5 kW |
| Maximum Speed | 2200 rpm |
| Displacement | 2.615 L / 0.69 gal |
| Number of Cylinders | 4 |
| Cooling Method | Water-cooled |
| Engine Oil Change Amount | 6.1 L / 1.6 gal |
| Fuel Type | Diesel |
| Theoretical Fuel Consumption | 9.72 L/h |
R57 PRO – Dimensions
| Body Dimensions | EU / US |
|---|---|
| Transport Length | 5850 mm / 230.3 in |
| Transport Width | 2000 mm / 78.7 in |
| Transport Height | 2580 mm / 101.6 in |
| Counterweight Ground Clearance | 665 mm / 26.3 in |
| Bucket Width | 600 mm / 23.6 in |
| Boom Length | 3000 mm / 118.1 in |
| Arm Length | 1600 mm / 63 in |
| Bulldozer Blade Width | 1880 mm / 74 in |
R57 PRO – Hydraulic System
| Hydraulic System | Specification |
|---|---|
| Main Pump Type / Model | Load-sensitive variable piston pump / 68 |
| Main Pump Brand | HYTEK |
| Main Pump Maximum Flow Rate | 149.6 L/min / 39.5 gpm |
| Multi-way Valve | 8-way hydraulic multi-way valve |
| Multi-way Valve Brand | HYTEK |
| Rated Set Pressure | 22.5 MPa / 3263 psi |
| Maximum Set Pressure | 25 MPa / 3626 psi |
| Travel Motor Type | TM07 |
| Travel Motor Brand | ZHTE |
| Motor Displacement | 22–44 ml/r |
| Slewing Hydraulic Motor Type | ZHTE DH80 |
| Slewing Motor Displacement | 43.2 ml/r |
Comfort, Safety & Maintenance
The R57 PRO cab is designed around operator comfort, visibility, and long working days. It includes a spacious cab layout, adjustable seat, arm rests, joystick controls, travel pedals, travel levers, display monitor, cup holder, radio, and air conditioning panel.
The R57 PRO includes practical safety and productivity features such as pilot safety lock, ROPS cab, optional OPG protective cover, powerful LED lighting, large glass doors for visibility, and an efficient hydraulic system for accurate attachment control.
Maintenance is made easier through wide access to service points including the engine, pump package, valve bank, cooling system, filters, hydraulic oil gauge, grease piping, external fuel cap, and engine hood hydraulic support.
Available Configuration Options
✔ Cab included as standard
✔ Air conditioning included as standard
✔ Pilot hydraulic control handle included
✔ Reversing camera available as an optional upgrade
✔ Bulldozer blade swing available as an optional configuration
✔ Steel track or rubber track options available
✔ Hydraulic thumb clamp available as an optional upgrade
✔ Compatible with a wide range of attachments for different working conditions
Compatible Attachments
✔ Quick coupler
✔ Hydraulic breaker
✔ Ripper
✔ Rake
✔ Hydraulic wood grabber
✔ Mower
✔ Compactor, scarifier, pile hammer, crushing tools, rotating log grapple, screen bucket and other specialist attachments available on request
Please contact us to confirm the most suitable R57 PRO configuration for your project, including track type, bucket selection, attachment requirements, and optional upgrades.
