Rippa

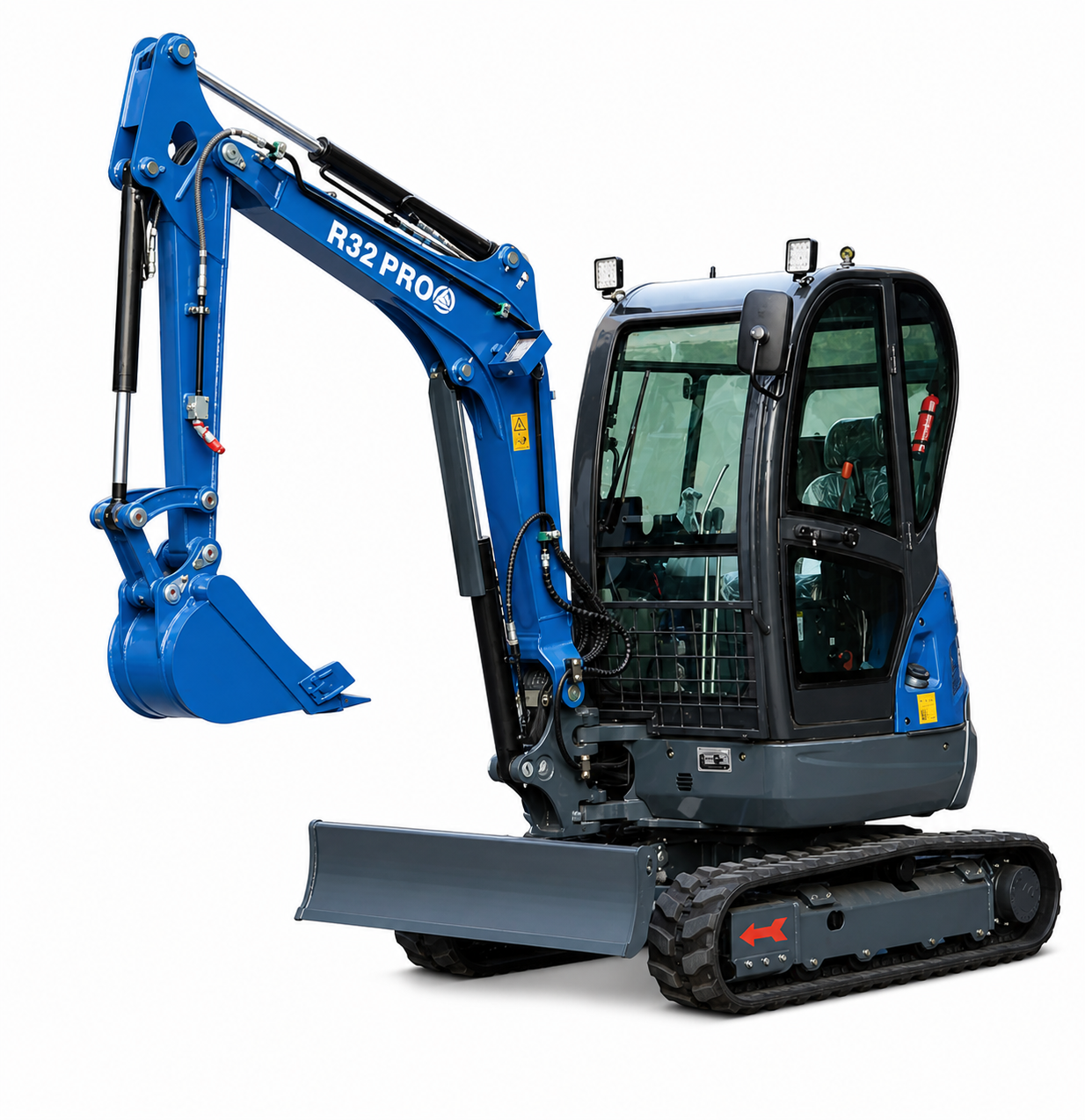

R32 Pro Mini Excavator
R32 Pro Mini Excavator
Couldn't load pickup availability
R32 PRO Mini Excavator
The Rippa R32 PRO is a semi-professional mini excavator designed for heavier excavation work, improved productivity, and reliable jobsite performance. With a larger operating weight, Kubota diesel power, and a comfortable cab design, the R32 PRO is well suited to construction, landscaping, groundworks, pool digging, and demanding private or commercial projects.
With an operating weight of 3,200 kg, a maximum digging depth of 2.827 meters, and a maximum digging force of 27 kN, the R32 PRO gives operators the strength, reach, and stability needed for larger excavation volumes and more efficient site work.
Key features include:
✔ Kubota V1505 diesel engine with strong and efficient power delivery
✔ 3,200 kg operating weight for improved stability and digging performance
✔ Load-sensitive hydraulic system for smoother operation and improved efficiency
✔ Large LCD display showing key machine operating information
✔ Comfortable cab workspace with air conditioning and LED lighting
✔ Full-open rear and side covers for easier maintenance access
✔ Rubber tracks as standard, with steel tracks available as an optional configuration
Additional accessories, such as hydraulic breakers, rotary drills, tilt buckets, mud buckets, grass rakes, scarifiers, grapples, and quick couplers, can be found in the “Accessories” section on our website.
R32 PRO – Performance Data
| Basic Parameters | EU / US |
|---|---|
| Operating Weight | 3200 kg / 7055 lb |
| Bucket Capacity | 0.08 m³ / 2.83 ft³ |
| Travel Speed (low/high) | 0–1.8 / 0–2.8 km/h / 0–1.1 / 0–1.7 mph |
| Gradeability | 30% |
| Ground Pressure | 36 kPa / 8093 psi |
| Maximum Digging Force | 27 kN / 6070 lbf |
| Maximum Digging Radius | 4831 mm / 190.2 in |
| Maximum Digging Depth | 2827 mm / 111.3 in |
| Maximum Digging Height | 4563 mm / 179.6 in |
| Maximum Unloading Height | 3181 mm / 125.2 in |
| Maximum Deflection Angle | 110° |
R32 PRO – Engine Data
| Engine | Specification |
|---|---|
| Engine Brand | Kubota |
| Engine Model | V1505 |
| Maximum Horsepower | 25 ps |
| Maximum Power | 18.5 kW |
| Maximum Speed | 2300 rpm |
| Displacement | 1.5 L / 0.4 gal |
| Number of Cylinders | 4 |
| Cooling Method | Water-cooled |
| Fuel Type | Diesel |
| Theoretical Fuel Consumption | 1.3–1.5 L/h |
R32 PRO – Dimensions
| Body Dimensions | EU / US |
|---|---|
| Transport Length | 2921 mm / 115 in |
| Transport Width | 1550 mm / 61 in |
| Transport Height | 2485 mm / 97.8 in |
| Counterweight Ground Clearance | 522 mm / 20.6 in |
| Bucket Width | 400 mm / 15.7 in |
| Boom Length | 2220 mm / 87.4 in |
| Arm Length | 1620 mm / 63.8 in |
| Bulldozer Blade Width | 1550 mm / 61 in |
R32 PRO – Hydraulic System
| Hydraulic System | Specification |
|---|---|
| Main Pump Type / Model | Load-sensitive piston pump / 45 |
| Main Pump Brand | Taifeng |
| Main Pump Maximum Flow Rate | 99 L/min |
| Multi-way Valve | Load-sensitive 9-way hydraulic multi-way valve |
| Multi-way Valve Brand | Taifeng |
| Rated Set Pressure | 18 MPa |
| Maximum Set Pressure | 20 MPa |
| Travel Motor Brand | Likechuan |
| Slewing Hydraulic Motor Type | Likechuan |
Comfort, Safety & Maintenance
The R32 PRO is designed to be safer, more comfortable, and easier to operate. The operator area includes pilot handles, walking pedals, a large LCD display, and an efficient control layout for smooth operation during long working days.
The machine includes practical safety and durability features such as a waterproof connector with cover, protected hose routing, front hose interior protection, a glass fibre hydraulic oil filter, divided dozer hose design, and auto glow for easier engine starting.
Maintenance is made easier through a full-open bonnet design, allowing the rear and side covers to open fully for improved access to key service areas including the air filter, oil filter, exhaust filter, and multi-way valve.
Available Configuration Options
✔ Roof-type or cab-type configuration available depending on requirement
✔ Comfortable cab with openable windshield
✔ Rubber tracks as standard
✔ Steel tracks available as an optional configuration
✔ Compatible with a wide range of assistive devices and attachments
Please contact us to confirm the most suitable R32 PRO configuration for your project, including cab type, track type, bucket selection, and attachment requirements.
