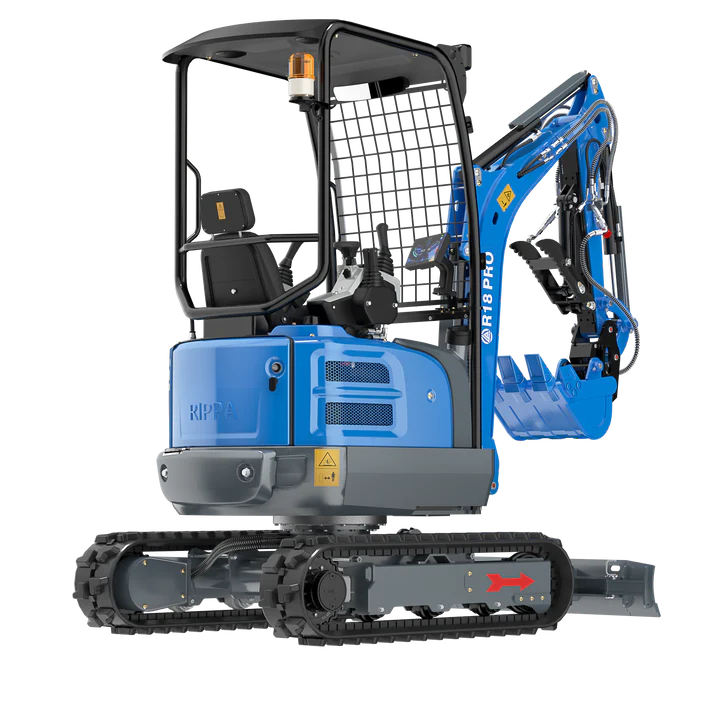

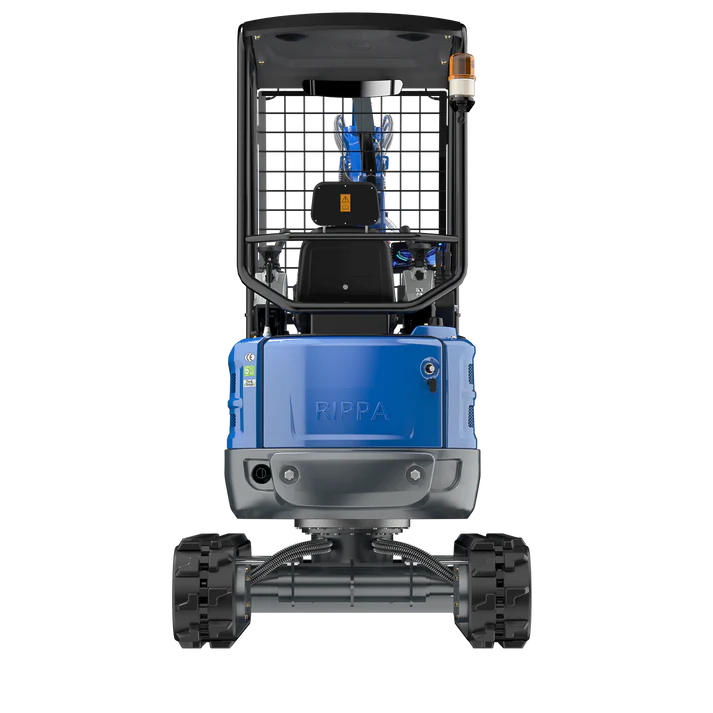

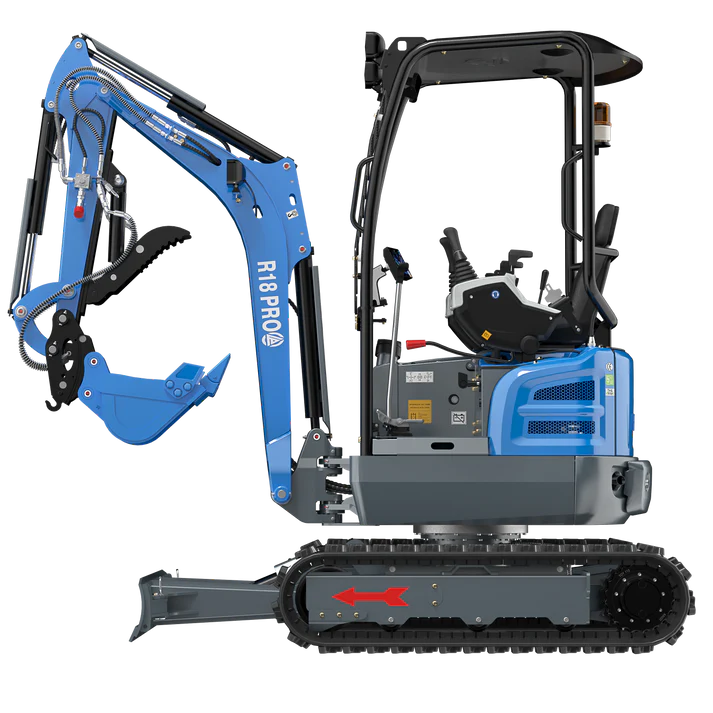

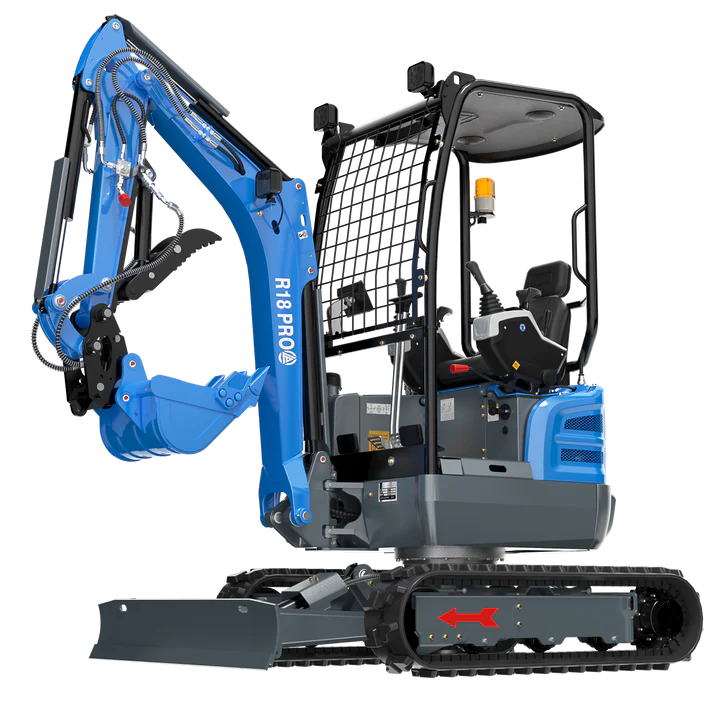

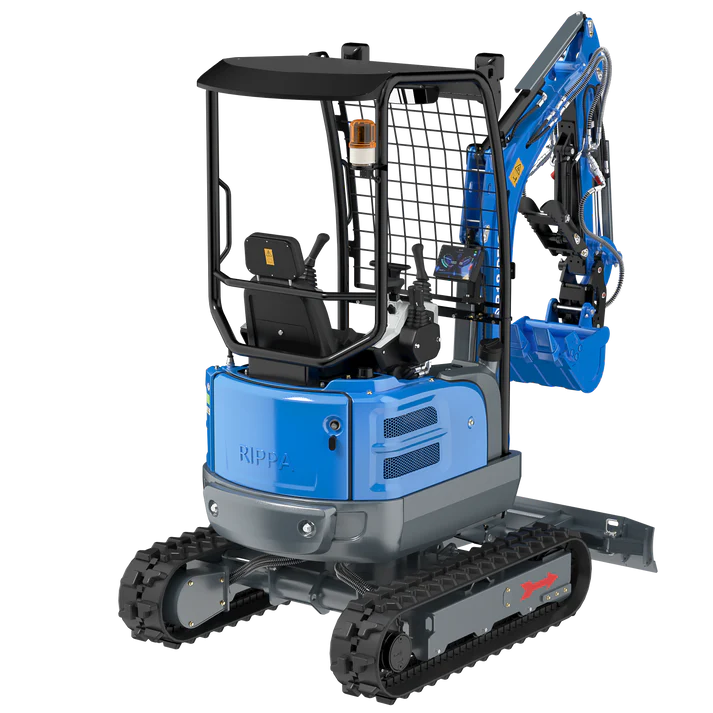

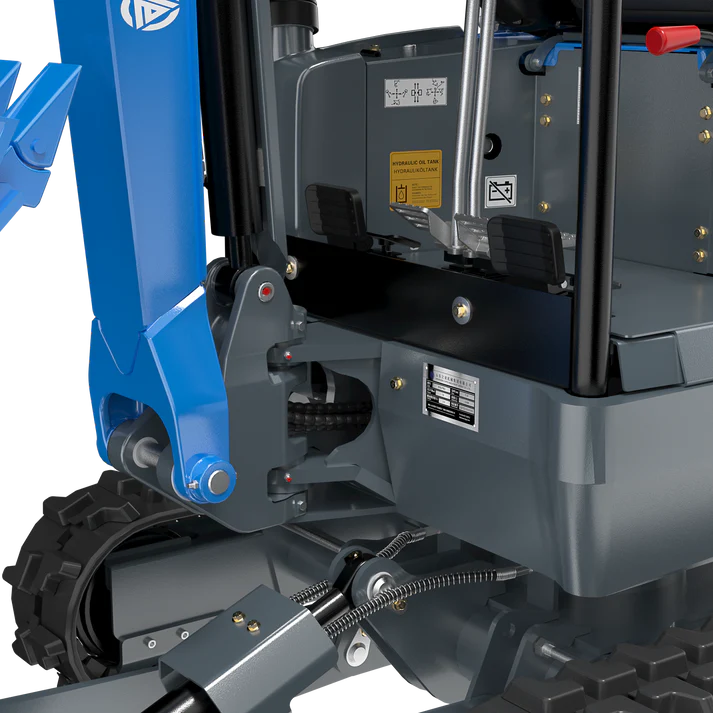

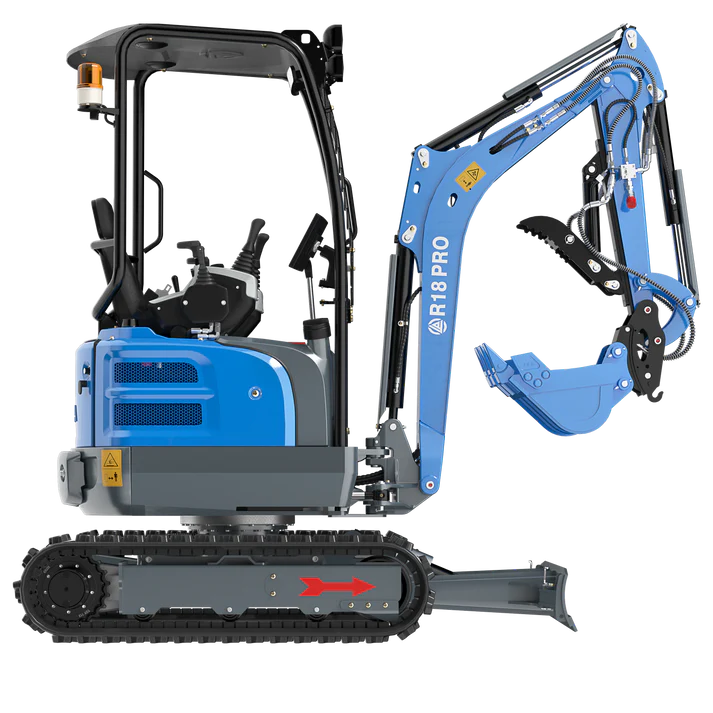

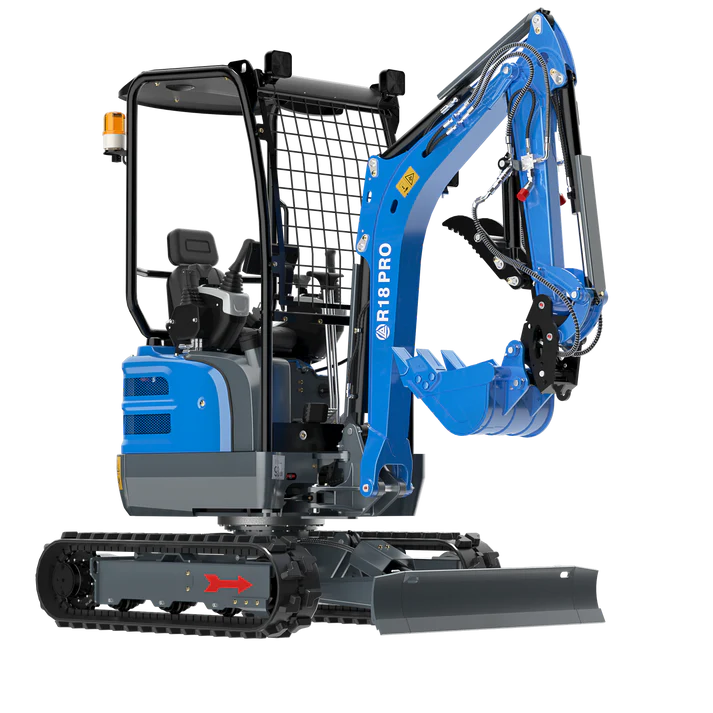

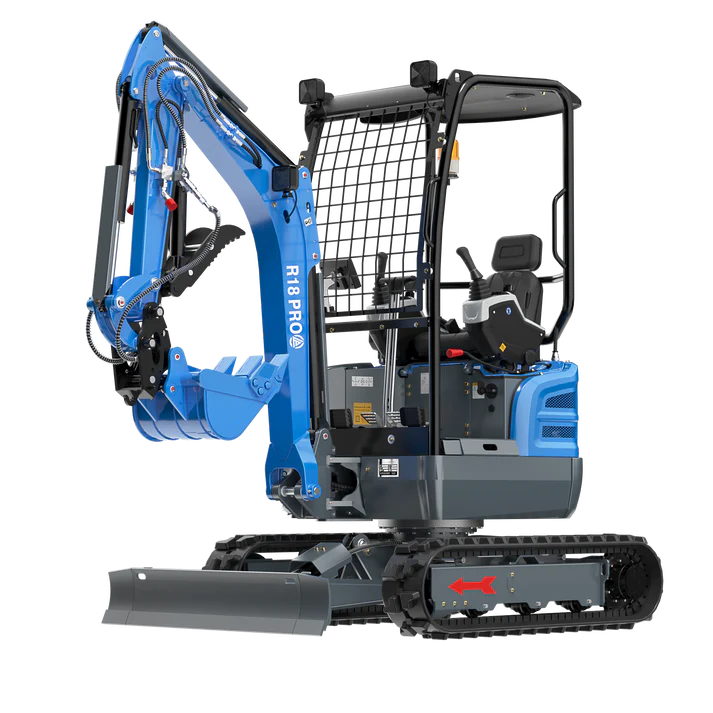

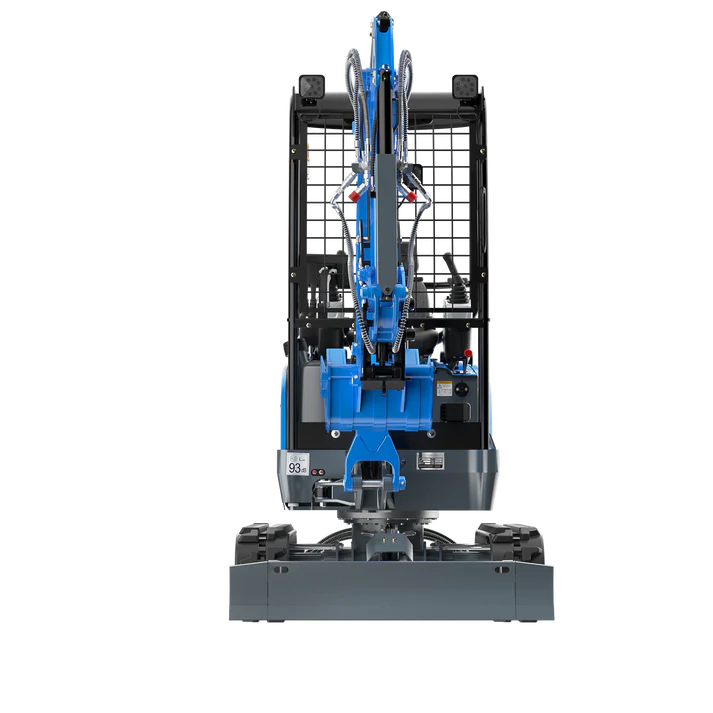

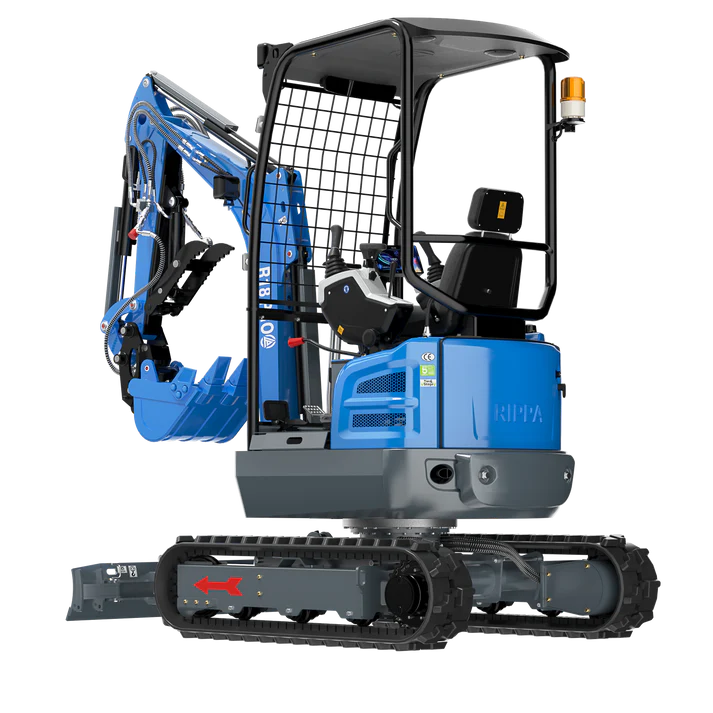

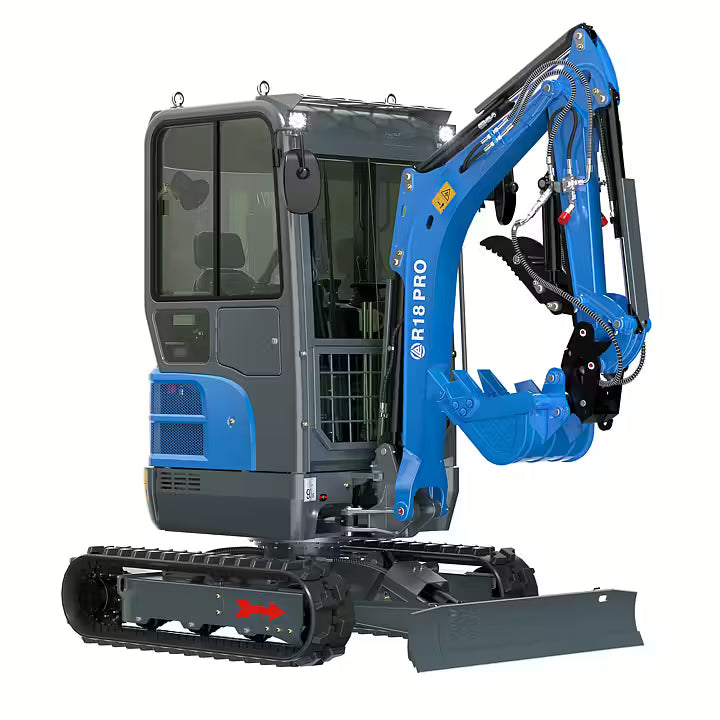

R18 PRO Mini Excavator
The Rippa R18 PRO is a powerful and versatile mini excavator, ideal for demanding construction projects, landscaping, and precise earthmoving work. With its robust design and powerful Kubota diesel engine, it combines efficiency, precision, and professional-grade reliability.
With an operating weight of 1,806 kg and a digging depth of 2.42 meters, the R18 PRO is perfectly equipped for intensive use and delivers consistent performance even under heavy loads.
Standard features include:
✔ 40 cm toothed bucket for precise digging
✔ Powerful Kubota diesel engine (Euro 5 certified)
✔ Robust design for maximum stability
✔ High digging depth for professional applications
Additional accessories, such as various buckets, grapples, or quick couplers, can be found in the “Accessories” section on our website.
R18 PRO – Specifications
| Basic Parameters |
EU / US |
| Operating weight |
1806 kg / 3982 lb |
| Bucket capacity |
0.07 m³ / 2.47 ft³ |
| Travel speed (low/high) |
0–1.8 / 3.0 km/h / 0–1.12 / 1.86 mph |
| Gradeability |
30 % |
| Ground pressure |
27.88 kPa / 4.04 psi |
| Digging forces (bucket/stick) |
≈8.2 / 12.2 kN |
| Max. digging radius |
3970 mm / 156.3 in |
| Max. digging depth |
2420 mm / 95.3 in |
| Max. digging height |
3400 mm / 133.9 in |
| Max. unloading height |
2180 mm / 85.8 in |
| Engine |
EU / US |
| Brand |
Kubota / Kubota |
| Model |
D902 / D902 |
| Max. horsepower |
20 PS / 20 hp |
| Max. power |
15 kW / 15 kW |
| Max. speed |
2200 rpm / 2200 rpm |
| Displacement |
1.813 L / 0.48 gal |
| No. of cylinders |
3 / 3 |
| Cooling |
Water cooling + hydraulic oil |
| Engine oil (change amount) |
3.5 L / 0.92 gal |
| Fuel |
Diesel / Diesel |
| Fuel grade |
No. 0 / -10 |
| Theoretical consumption |
1.5–1.8 L/h / 0.40–0.48 gal/h |
| Dimensions |
EU / US |
| Transport length |
2527 mm / 99.5 in |
| Transport width |
1092 mm / 43.0 in |
| Transport height |
2349 mm / 92.5 in |
| Ground clearance (counterweight) |
450 mm / 17.7 in |
| Bucket width |
400 mm / 15.7 in |
| Boom length |
1825 mm / 71.9 in |
| Arm length |
1185 mm / 46.7 in |
| Blade width |
990 mm / 39.0 in |
| Hydraulic System |
EU / US |
| Rated pressure |
23 MPa |
| Maximum set pressure |
18 MPa |
| Main pump max. flow |
28 L/min |
| Control valve |
9-way multiway valve (hydraulic control) |
| Control valve brand |
Taifeng Hydraulic |
| Travel motor type |
LTM03C |
| Travel motor brand |
LIKECHUAN |
