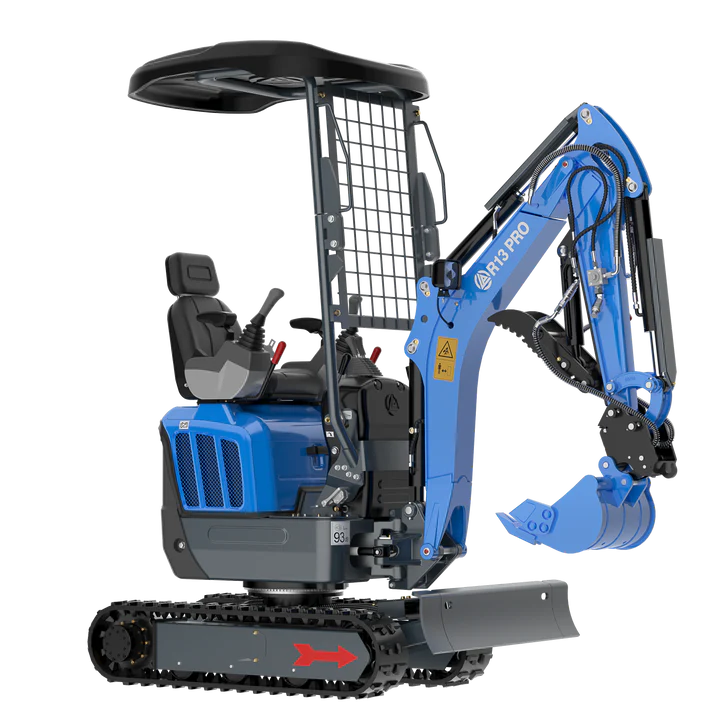

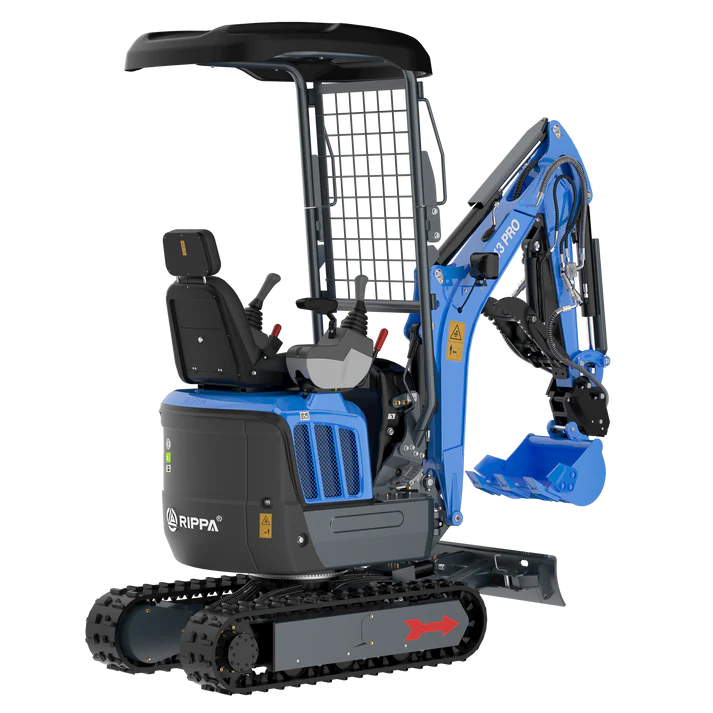

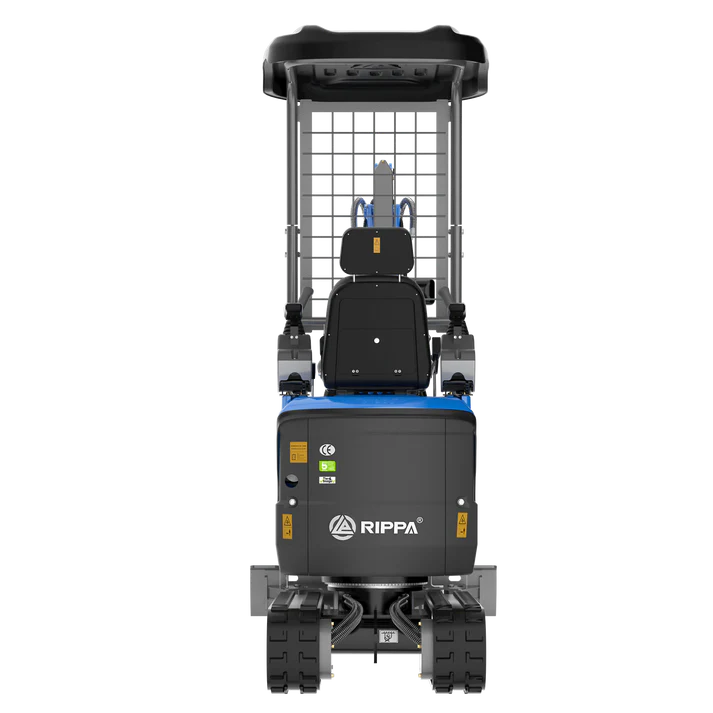

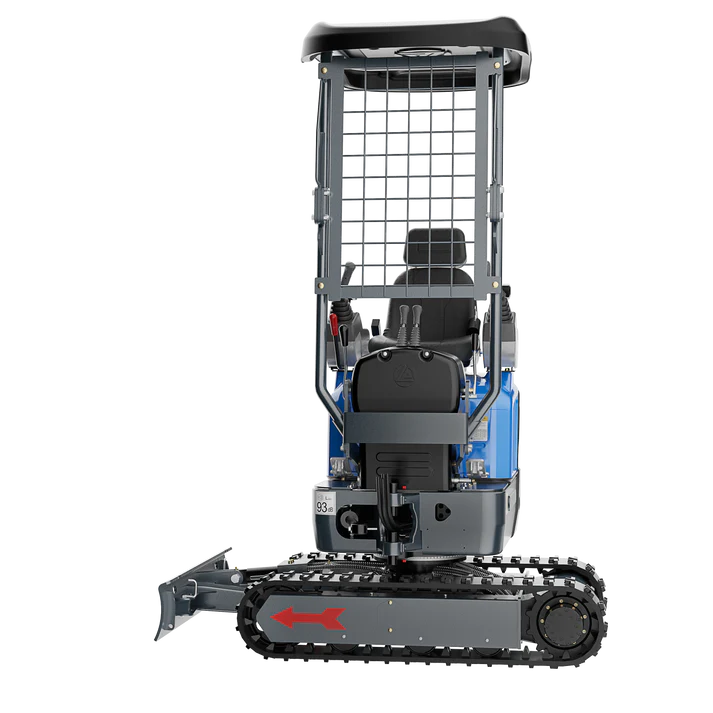

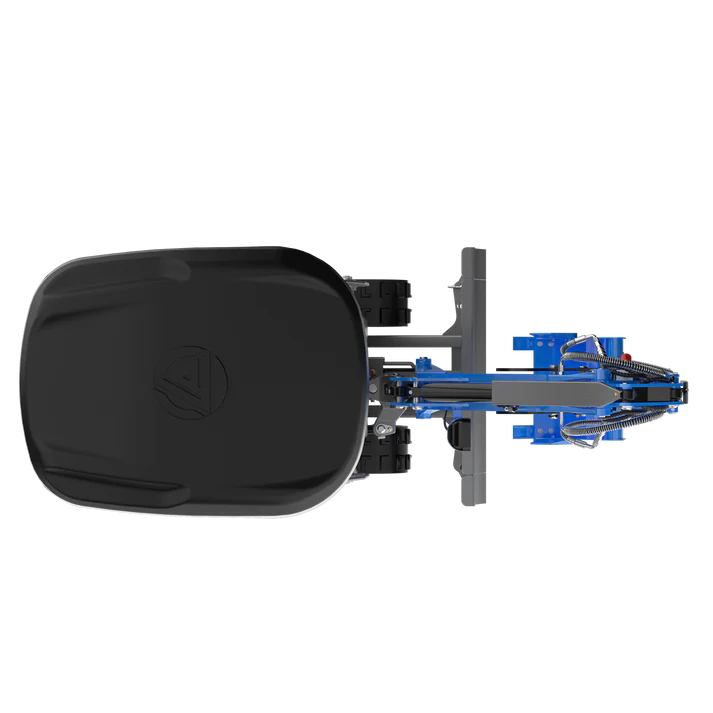

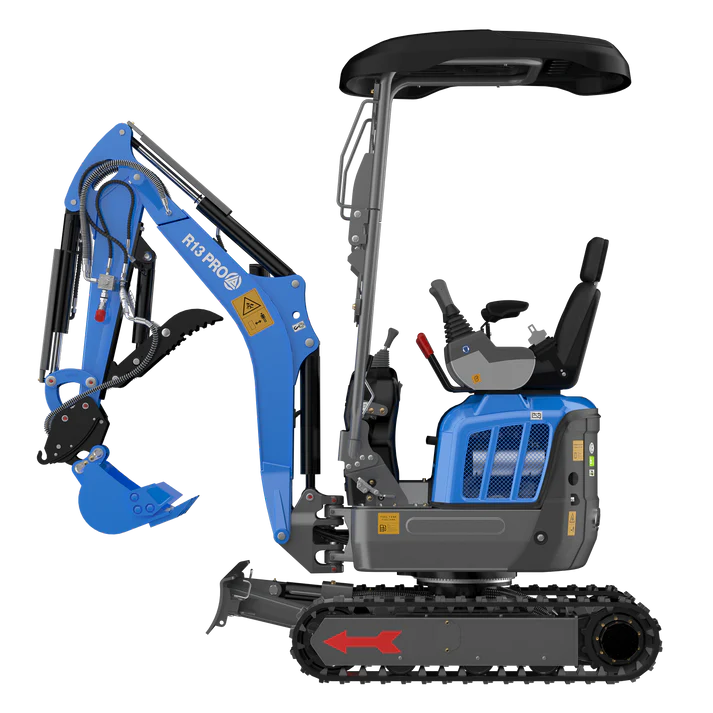

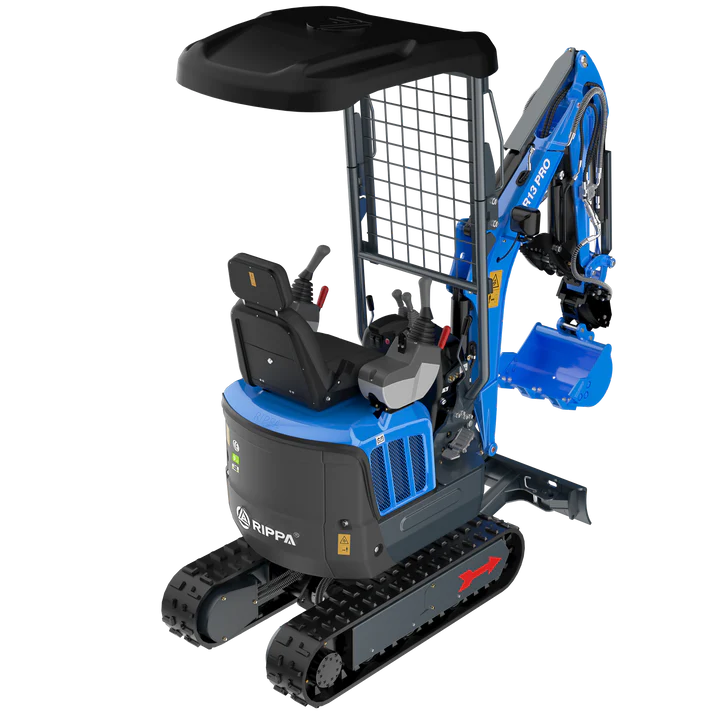

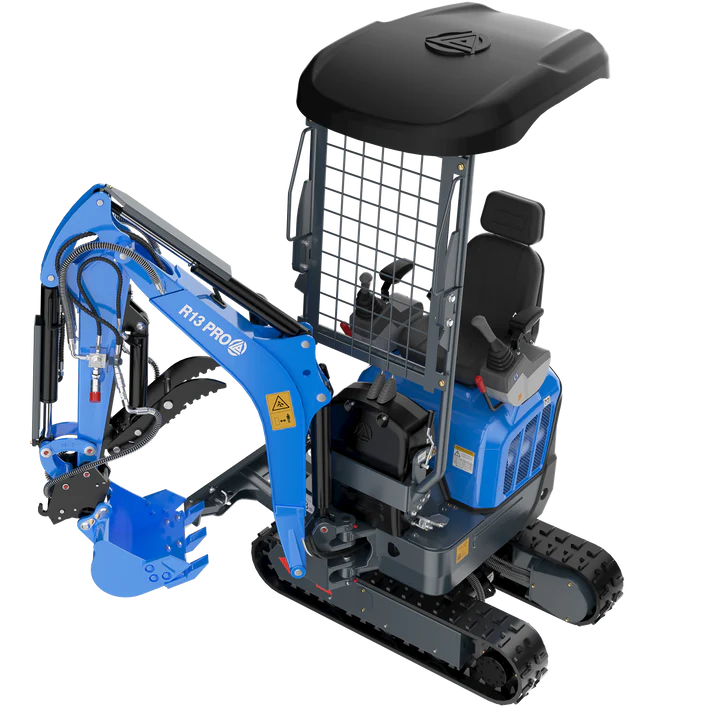

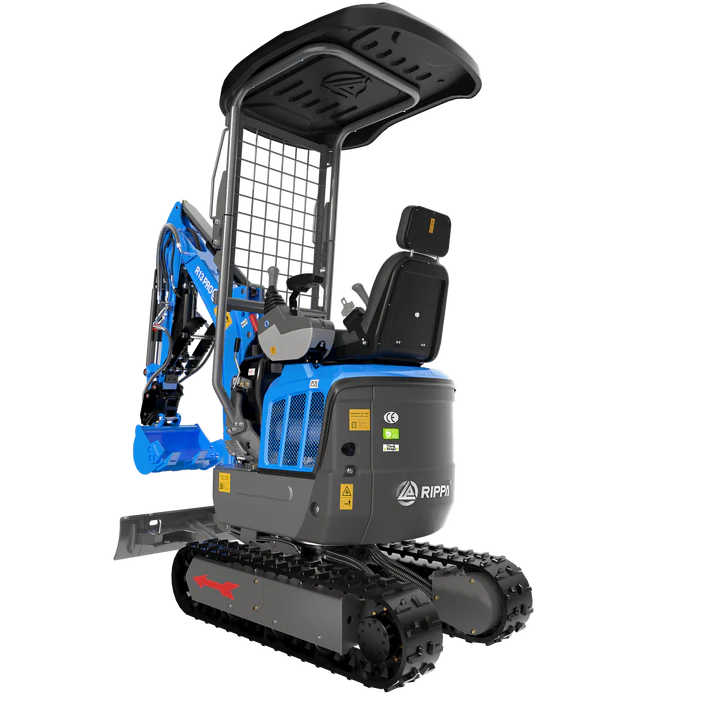

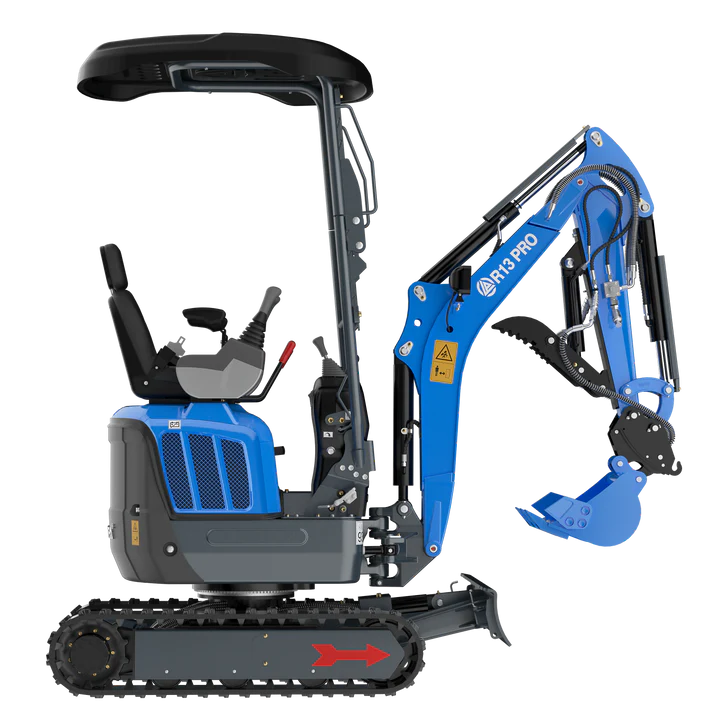

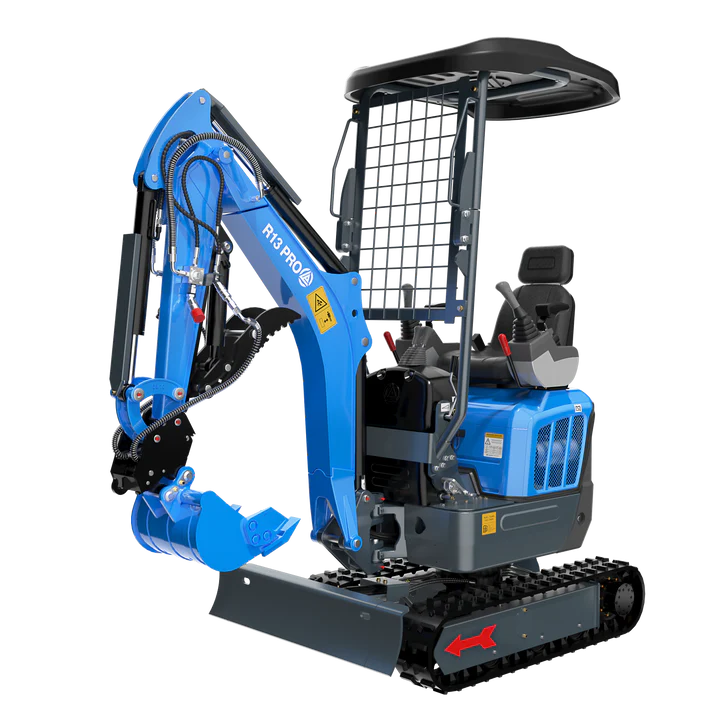

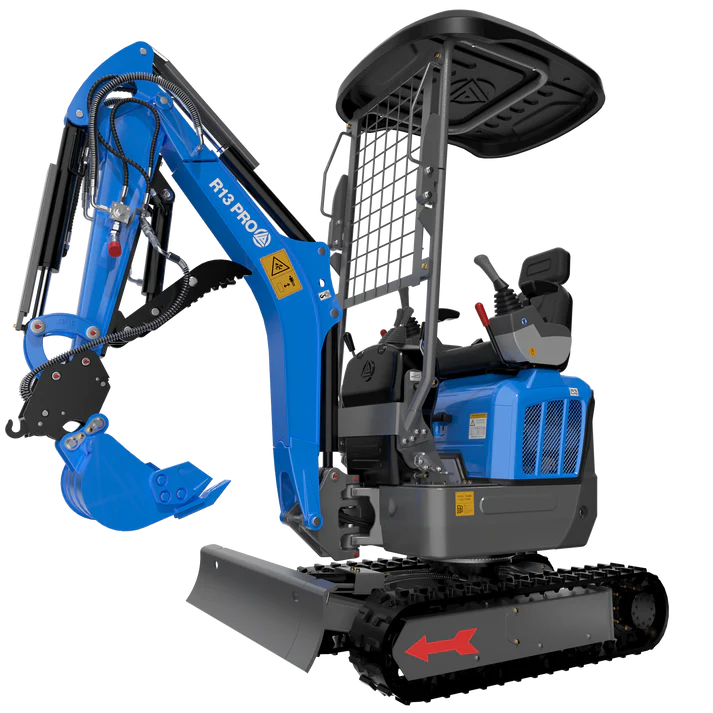

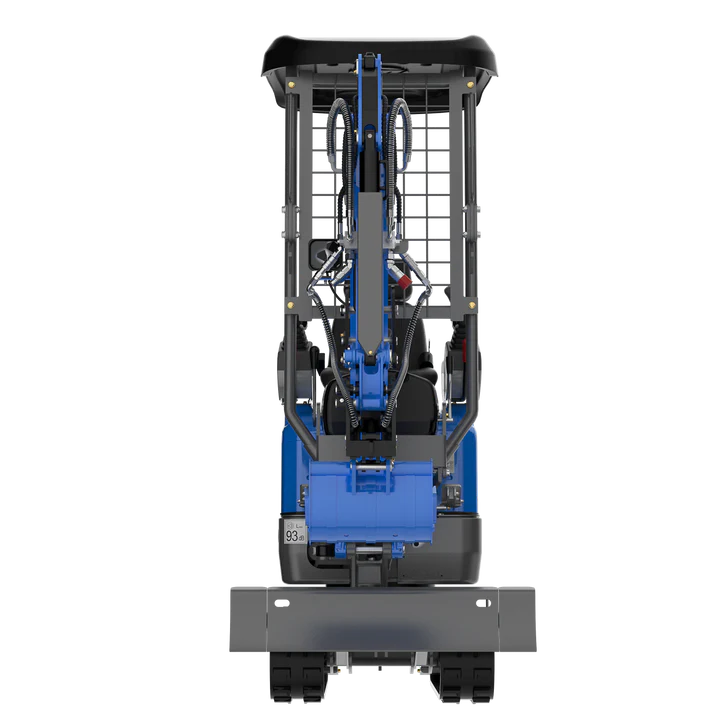

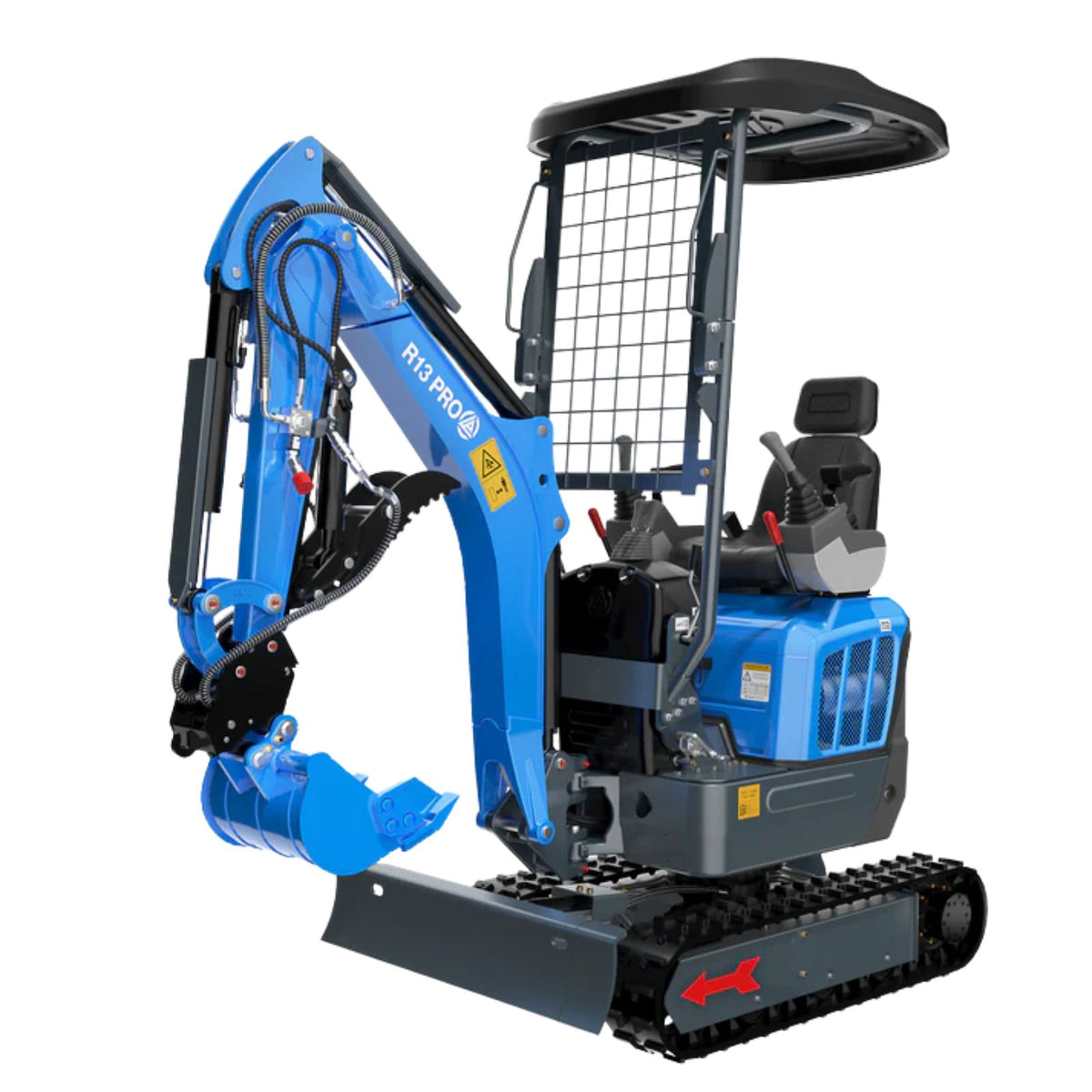

R13 PRO Mini Excavator
The Rippa R13 PRO is a powerful and compact mini excavator, ideal for construction projects, landscaping, and precise work in confined spaces. With its combination of power, efficiency, and maneuverability, it is a versatile all-rounder for demanding applications.
Equipped with a reliable Kubota diesel engine, the R13 PRO delivers smooth operation, low fuel consumption, and long service life. With a digging depth of 2,100 mm and an operating weight of 1,300 kg, it is well suited for a wide range of professional and private jobs.
Standard features include:
✔ 40 cm toothed bucket for precise digging
✔ Powerful Kubota diesel engine (Euro 5 certified)
✔ Compact design for tight working areas
✔ Stable construction for professional results
Additional accessories, such as various buckets, grapples, or quick couplers, can be found in the “Accessories” section on our website.
R13 PRO – Performance Data
| Basic Performance Data |
EU / US |
| Operating Weight |
1300 kg / 2866 lb |
| Bucket Capacity |
0.025 m³ / 0.88 ft³ |
| Travel Speed |
0–2.5 km/h / 0–1.55 mph |
| Max. Gradeability |
30 % / 30 % |
| Ground Pressure |
28 kPa / 4.06 psi |
| Max. Digging Force |
13.5 kN / 13.5 kN |
| Max. Digging Radius |
3600 mm / 141.7 in |
| Max. Digging Depth |
2100 mm / 82.7 in |
| Max. Digging Height |
3200 mm / 126.0 in |
| Max. Dumping Height |
2300 mm / 90.6 in |
| Max. Swing Angle |
120° / 120° |
| Track Size (Width×Pitch×Links) |
230 mm × 96 mm × 38 / 9.06 in × 3.78 in × 38 |
| Engine |
EU / US |
| Brand |
Kubota / Kubota |
| Model |
D722 / D722 |
| Max. Horsepower |
13.9 PS / 13.9 hp |
| Rated Power |
10.3 kW |
| Max. Speed |
2500 rpm |
| Displacement |
0.719 L / 0.19 gal |
| No. of Cylinders |
3 / 3 |
| Cooling Method |
Water-cooled / Water-cooled |
| Engine Oil Capacity |
3.5 L / 0.92 gal |
| Fuel Type |
Diesel / Diesel |
| Fuel Quality |
Nr. 0 / -10 / No. 0 / -10 |
| Theoretical Consumption |
1.2–1.5 L/h / 0.32–0.40 gal/h |
Dimensions & Hydraulic System
| Dimensions |
EU / US |
| Transport Length |
2550 mm / 100.4 in |
| Transport Width |
1100 mm / 43.3 in |
| Transport Height |
2300 mm / 90.6 in |
| Ground Clearance |
380 mm / 15.0 in |
| Bucket Width |
400 mm / 15.7 in |
| Boom Length |
1600 mm / 63.0 in |
| Arm Length |
900 mm / 35.4 in |
| Blade Width |
1100 mm / 43.3 in |
| Hydraulic System |
EU / US |
| Main Pump Type / Model |
CBGJ2063 |
| Main Pump Brand |
Tianjin Walking |
| Max. Pump Flow |
23 L/min |
| Control Valve |
2–3 joints |
| Control Valve Brand |
Tengfei |
| Rated Pressure |
18 MPa |
| Max. Pressure |
20 MPa |
| Travel Motor |
BM5-200 |
| Travel Motor Brand |
Paiyi |
| Travel Motor Displacement |
200 |
| Swing Motor |
BM2-315 |
| Swing Motor Displacement |
200 |
